Description:

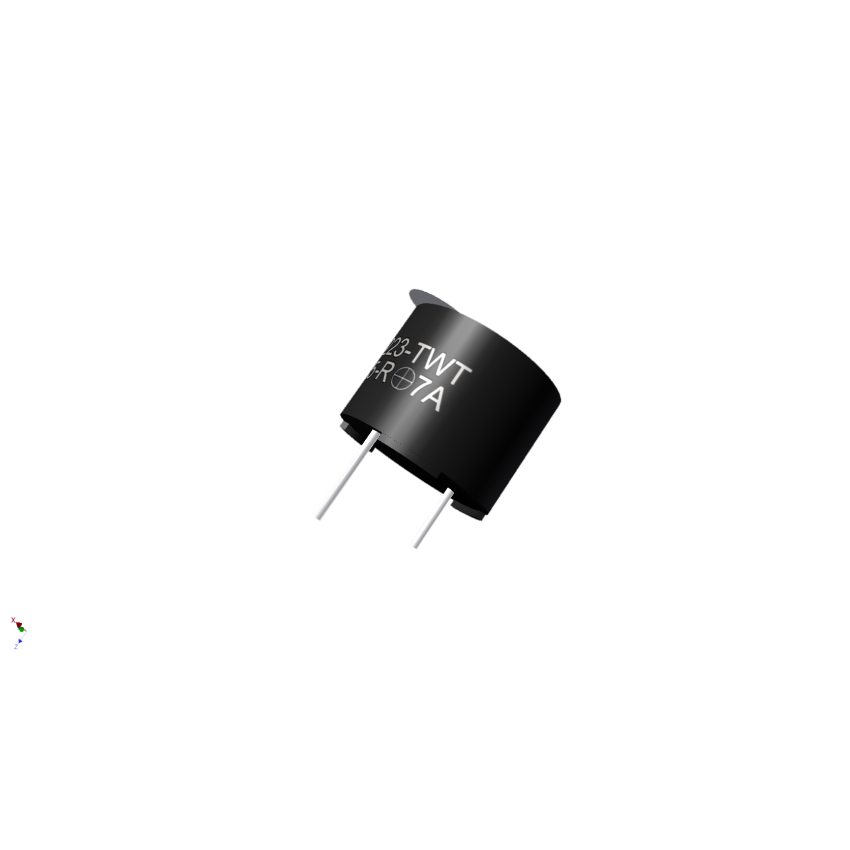

Buzzers Indicator, Internally Driven Electromechanical/Magnetic 5 V 30mA 2.3kHz 85dB @ 5V, 10cm Through Hole PC Pins

Specifications:

• Height: 15mm
• Width: 12mm
• Length: 12mm
• Operating Temp. : -20.00° to 70.00°
• Device Type : Electro-Mechanical
• Rated Voltage (Vdc) : 5
• Resonant Frequency (kHz) : 2.3
• SPL (dB) : 85
• Rated Current Max (mA) : 30
• Tone Or Pulse Rate : Continuous
• Temp. Grade : Standard
• Shape : Round
• Tolerance (kHz) : 0.3
• Operating Voltage Min (Vdc) : 4
• Operating Voltage Max (Vdc) : 7
• Terminal Material : Sn Plated Brass
• IP Rating : - N/A -
• Weight (g) : 2
• Additional Features : Top Firing, Washable, Thru-Hole
