Arduino GIGA Display Shield Bundle - 3.97” Touchscreen with GIGA R1 WiFi Board

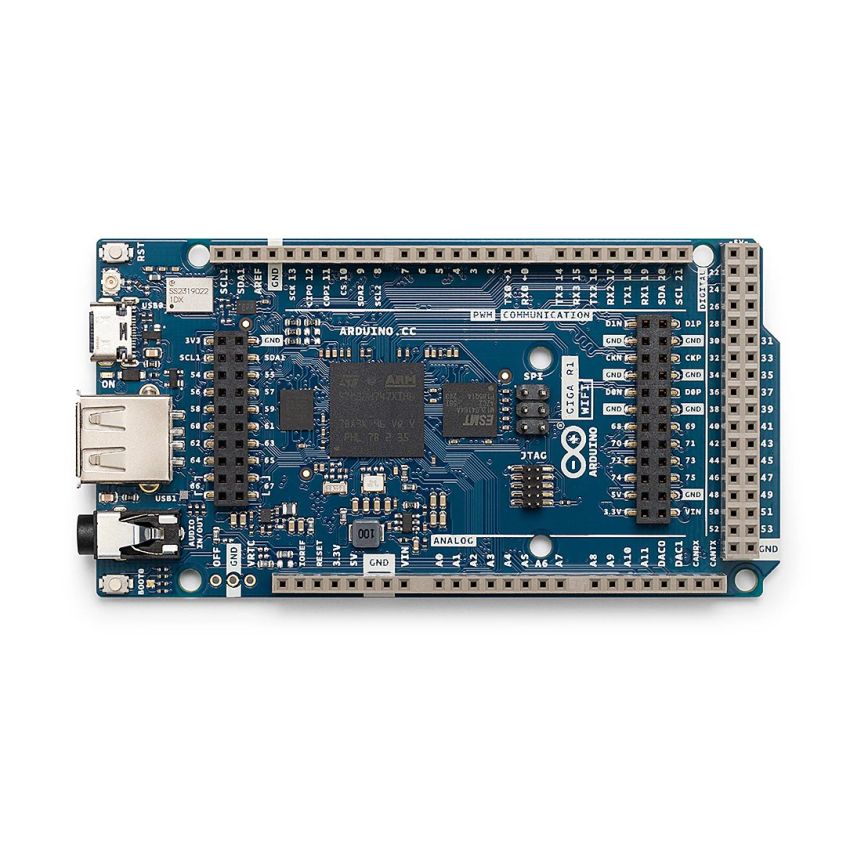

The Arduino GIGA Display Shield Bundle is a complete package that includes the GIGA R1 WiFi board and the GIGA Display Shield (ASX00039), designed for advanced graphical interface solutions. The 3.97-inch TFT-LCD capacitive touchscreen offers a 480x800 resolution, 16.7 million colors, and five simultaneous touch points. The shield integrates a 6-axis IMU sensor, a digital microphone, an RGB LED driver, and a camera interface, making it ideal for IoT, robotics, and interactive projects. The display shield connects directly to the middle headers (J5 and J6) of the GIGA R1 WiFi while keeping all 54 pins accessible for additional peripherals.
Key Features:

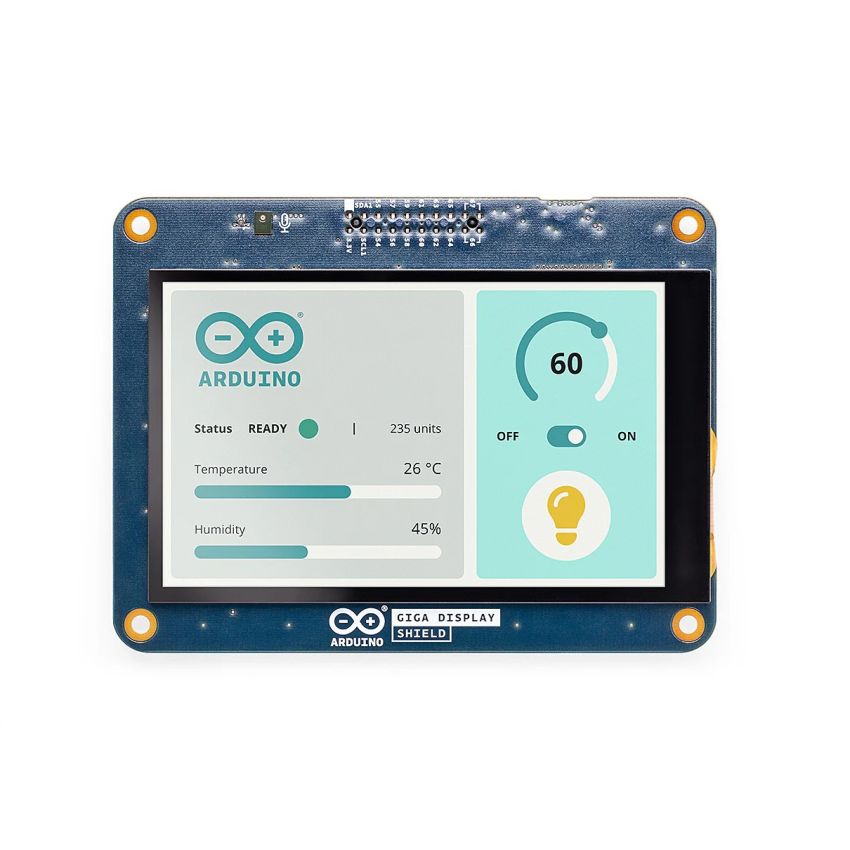

• 3.97” TFT-LCD Display with 480x800 resolution and 16.7 million colors.
• Capacitive touchscreen with 5-point multi-touch and gesture recognition.
• 6-axis IMU (BMI270) sensor for motion detection and orientation tracking.
• Digital MEMS microphone (MP34DT06JTR) for voice input and audio applications.
• Integrated RGB LED controlled by the IS31FL3197 driver.
• 20-pin Arducam-compatible connector for real-time camera integration.
