Arduino PLC Starter Kit

The Arduino PLC Starter Kit is designed to bridge the gap between PLC education and industry needs. This educational kit provides 20 hours of lessons with the Explore PLC course, enabling students to learn about Programmable Logic Controllers, Modbus RS-485 communications, and integration with simulated industrial systems. Supporting five IEC 61131-3 standard PLC programming languages, this kit is programmable using the intuitive Arduino PLC IDE and Arduino Opta.

The Arduino Opta WiFi can also be programmed and integrated into an industrial automation system using Arduino IDE 2, which features enhanced performance, autocompletion, a built-in debugger, and cloud synchronization. The kit seamlessly integrates with Arduino Cloud services for IoT projects, enabling remote control functionalities. Comprehensive documentation and tutorials are available on the Arduino Docs page.

Key Features

• 20 hours of educational content with the Explore PLC course
• Supports five IEC 61131-3 standard PLC programming languages
• User-friendly Arduino PLC IDE
• Cloud-ready with Arduino Cloud services for IoT projects
• Comprehensive tutorials and technical documentation available
• Arduino Opta WiFi integration with enhanced IDE 2 features

Specifications Arduino Opta WiFi

• STM32H747XI Dual Arm Cortex processor
• 8x configurable digital/analog (0-10 V) input
• 4x relays (250 V AC - 10A) output
• 10/100 Ethernet support (TCP/IP or Modbus TCP)
• USB-C
• Wi-Fi Bluetooth Low Energy
• RS485 half duplex

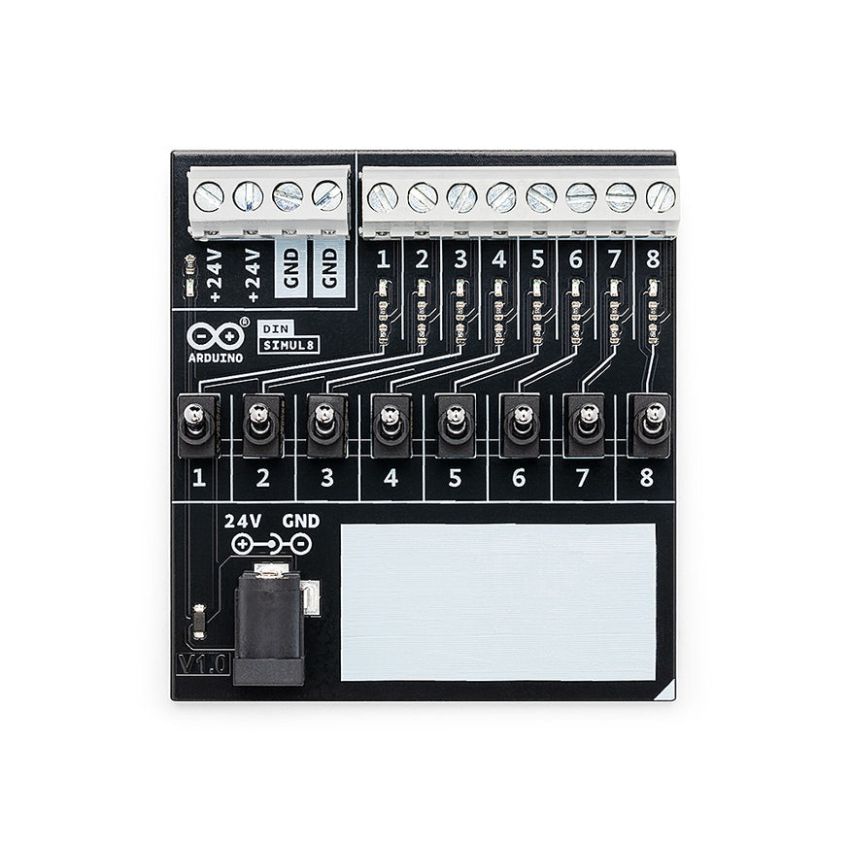

Arduino DIN Simul8

• 8 SPST Toggle Switches
• 8 signal lines
• Barrel Plug for power supply
• DIN bar mount
• Reverse polarity and 24V miswiring protection on screw terminals

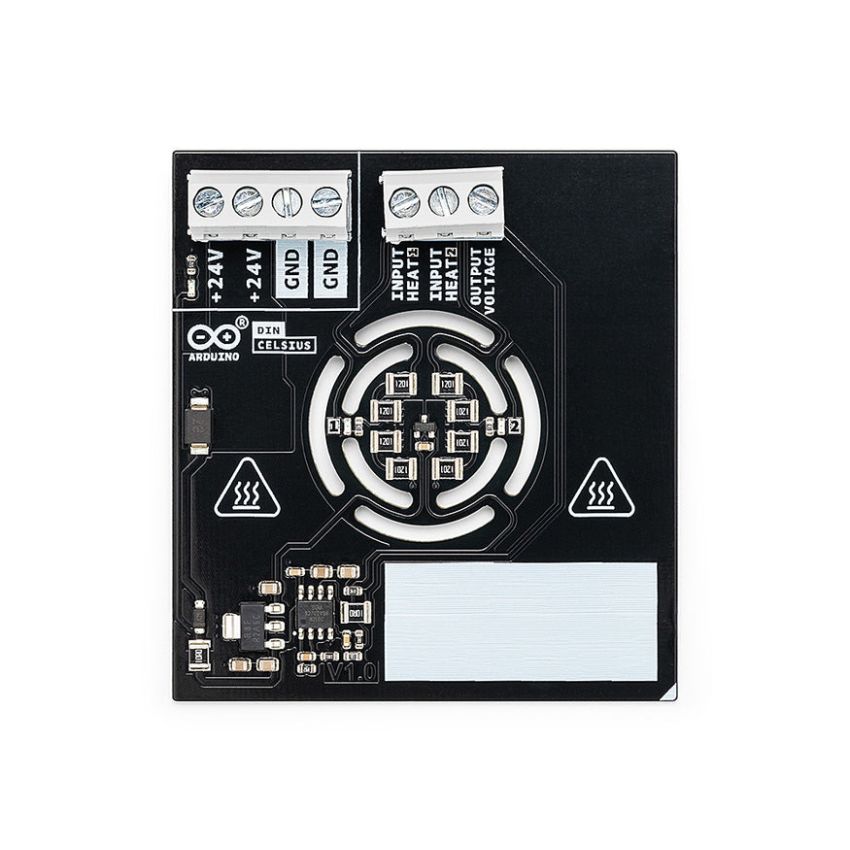

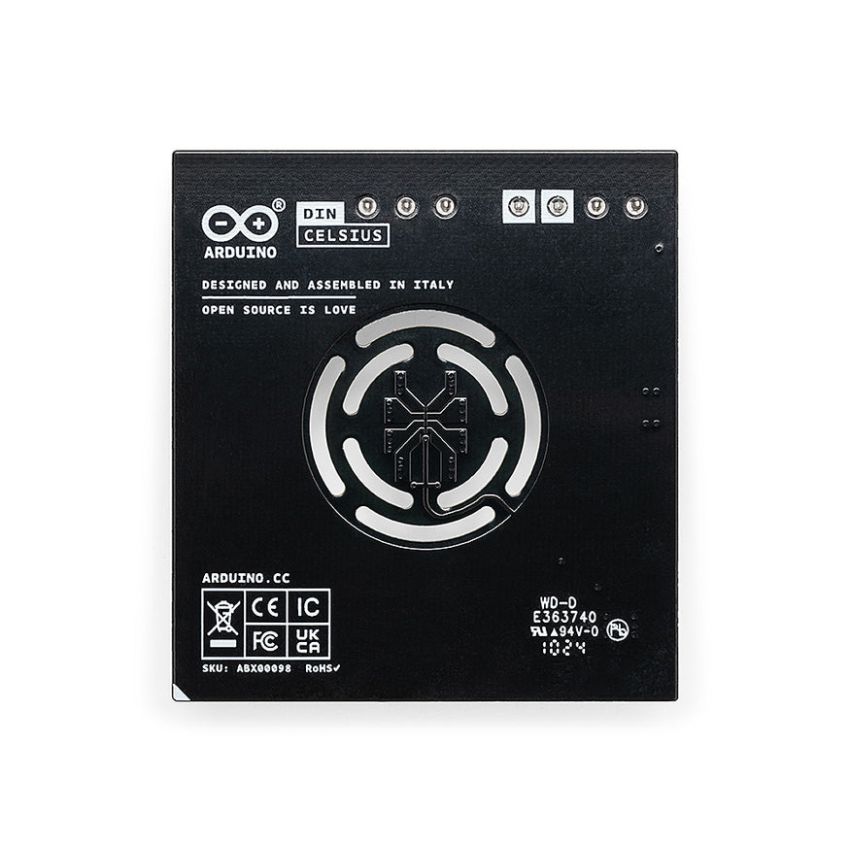

Arduino DIN Celsius

• TMP236A2DBZR Temperature Sensor
• 24 V power lines for 2 independent heater arrays
• DIN bar mount
• Reverse polarity and 24V miswiring protection on screw terminals

Additional Components

• 20 cm double-ended cables (white, black, red)
• USB-C Cable
• 24 V 1A Power Supply

Programming Languages

• Arduino programming language via any IDE
• IEC-61131-3: Ladder Diagram (LD), Function Block Diagram (FBD), Sequential Function Chart (SFC), Structured Text (ST), Instruction List (IL)
