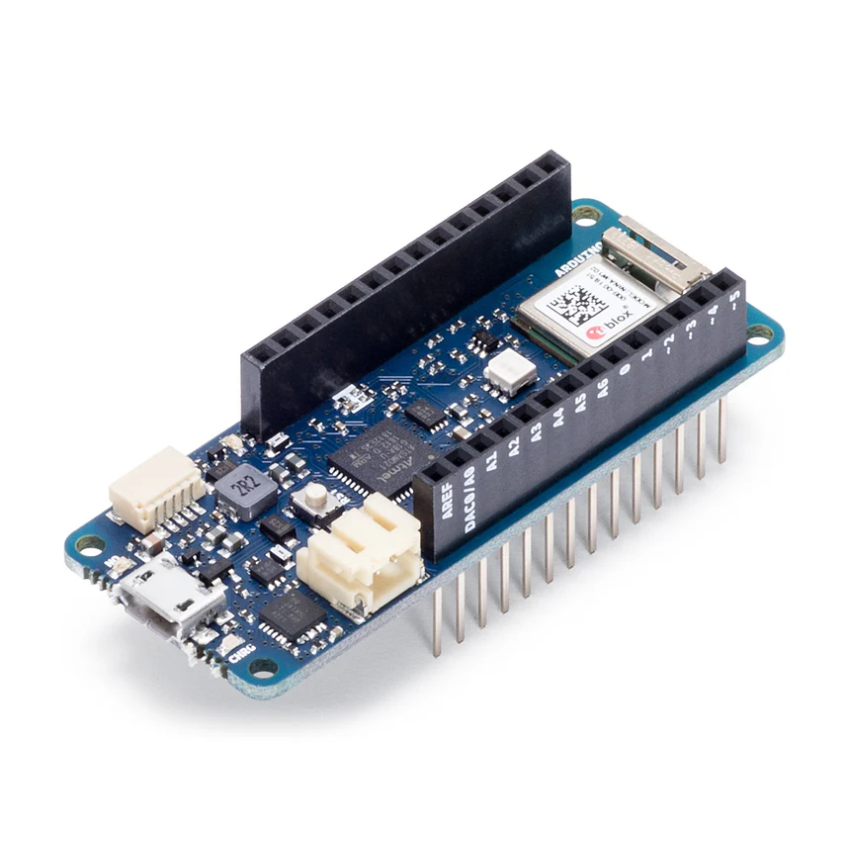

ABX00023 Arduino MKR WIFI 1010 BOARD

The Arduino MKR WiFi 1010 is the easiest point of entry for IoT and pico-network applications. Whether you are building a sensor network connected to your office or home router or creating a Bluetooth® Low Energy device to send data to a cellphone, this board is your one-stop solution for many basic IoT application scenarios. <ul> <li><strong>Bluetooth® and Bluetooth® Low Energy</strong><br> The communications chipset on the MKR WiFi 1010 can function as both a Bluetooth® Low Energy and Bluetooth® client or host device. This dual capability is rare in microcontroller platforms. The ArduinoBLE library provides examples to create either a Bluetooth® central or peripheral device with ease. </li> <li><strong>Battery Power</strong><br> The MKR WiFi 1010 can be powered via its USB port (5V) or through a Li-Po battery. It includes a Li-Po charging circuit that allows the board to run on battery power while simultaneously charging the battery from an external 5V source. The board automatically switches between power sources. </li> <li><strong>Tech Specs</strong><br> <ul> <li>Microcontroller: SAMD21 Cortex®-M0+ 32bit low power ARM® MCU</li> <li>Radio module: u-blox NINA-W102</li> <li>Board Power Supply (USB/VIN): 5V</li> <li>Secure Element: ATECC508</li> <li>Supported Battery: Li-Po Single Cell, 3.7V, 1024mAh minimum</li> <li>Circuit Operating Voltage: 3.3V</li> <li>Digital I/O Pins: 8</li> <li>PWM Pins: 13 (0 to 8, 10, 12, 18 / A3, 19 / A4)</li> <li>UART: 1</li> <li>SPI: 1</li> <li>I2C: 1</li> <li>Analog Input Pins: 7 (ADC 8/10/12 bit)</li> <li>Analog Output Pins: 1 (DAC 10 bit)</li> <li>External Interrupts: 10 (0, 1, 4, 5, 6, 7, 8, 9, 16 / A1, 17 / A2)</li> <li>DC Current per I/O Pin: 7 mA</li> <li>CPU Flash Memory: 256 KB (internal)</li> <li>SRAM: 32 KB</li> <li>EEPROM: None</li> <li>Clock Speed: 32.768 kHz (RTC), 48 MHz</li> <li>LED_BUILTIN: Pin 6</li> <li>USB: Full-Speed USB Device and Embedded Host</li> <li>Length: 61.5 mm</li> <li>Width: 25 mm</li> <li>Weight: 32 grams</li> </ul> </li> </ul>
