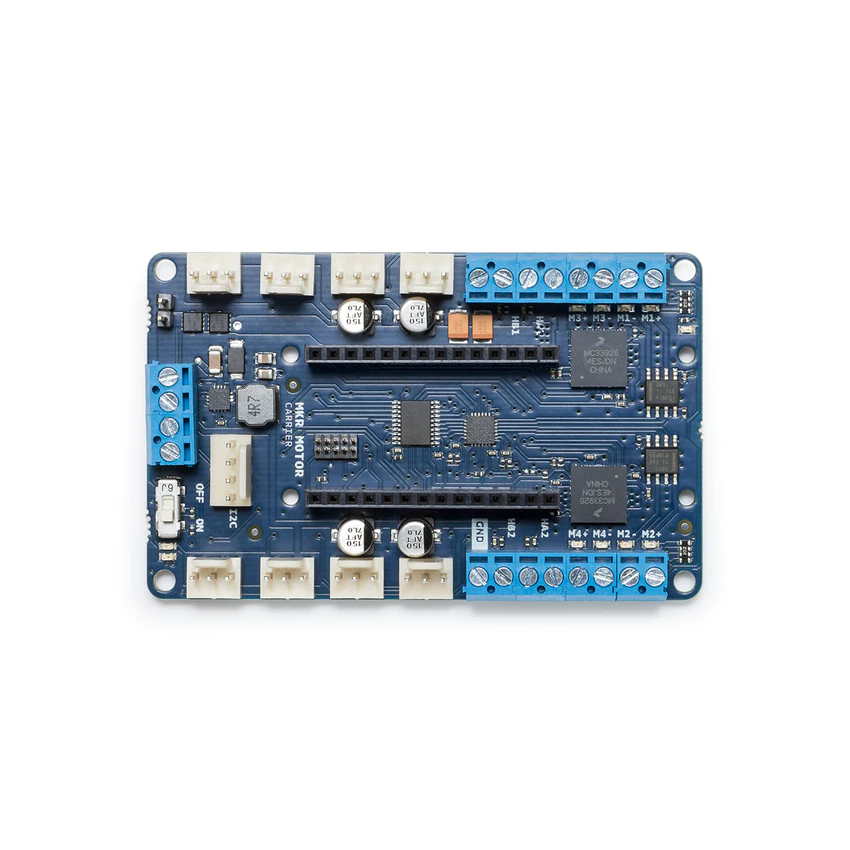

ASX00003, ARDUINO MKR MOTOR CARRIER

• Compatibility: Works seamlessly with all boards in the MKR family
• Motor Outputs:
  • Four servo motor outputs
  • Four DC motor outputs (two high-performance and two standard-performance)
• Current Sensing: Current feedback for high-performance motors
• Sensor Inputs:
  • Two inputs for encoder sensors
  • Four inputs for analog sensors (3-pin compatible)
• Battery Monitoring: Allows reading battery status
• Power Control: ON-OFF switch with Power ON LED
• Power Sources: LiPo battery connector (2S or 3S compatible) and power terminal block for alternative power
• Visual Feedback: LEDs indicate DC motor rotation direction
• On-Board Processor: Supports automated control for certain outputs
• I2C Connector: 4-pin male header for I2C connectivity

# Technical Specifications

• Microcontroller: ATSAMD11 (Arm Cortex-M0+ processor)
• Max Current (MC33926): 5 Amps Peak, RMS current depends on heat sinking
• Max Current (DRV8871): 3 Amps peak, current limited by sense resistor
• Rated Voltage: 6.5 to 11.1V
• Reverse Current Protection: Yes
• Over-Temperature Protection: Available for DC motor drivers
• Clock Speed: 48 MHz
• Voltage Regulator: 5V on board
• Interface: Terminal block and 3-pin/4-pin header connector
• Compatibility: Compatible with the MKR Family

# Additional Features The MKR Motor Carrier integrates two MC33926 motor drivers for high-performance DC motor control, providing direct connection to the MKR1000, current feedback, and handling up to 5 Amps (peak). It also includes two DRV8871 drivers, managed by the SAMD11 microcontroller, which communicates with the MKR1000 via I2C (with SPI as an option). The SAMD11 manages the servos, encoder readings, and battery voltage monitoring, with an interrupt line on PA27 connecting the SAMD11 to the MKR board.
