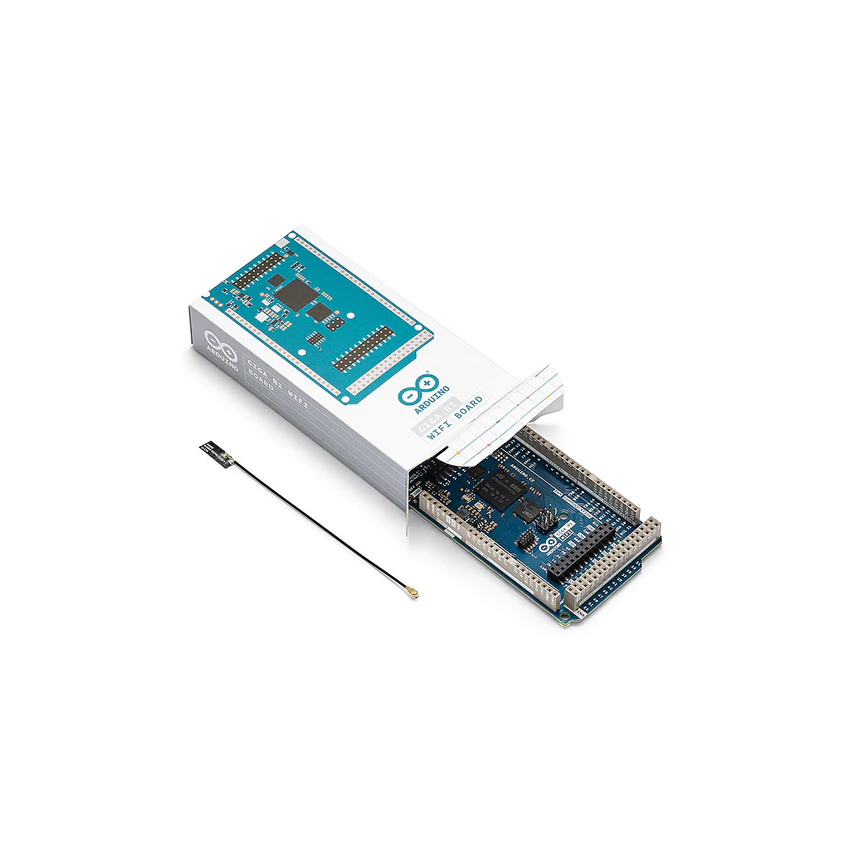

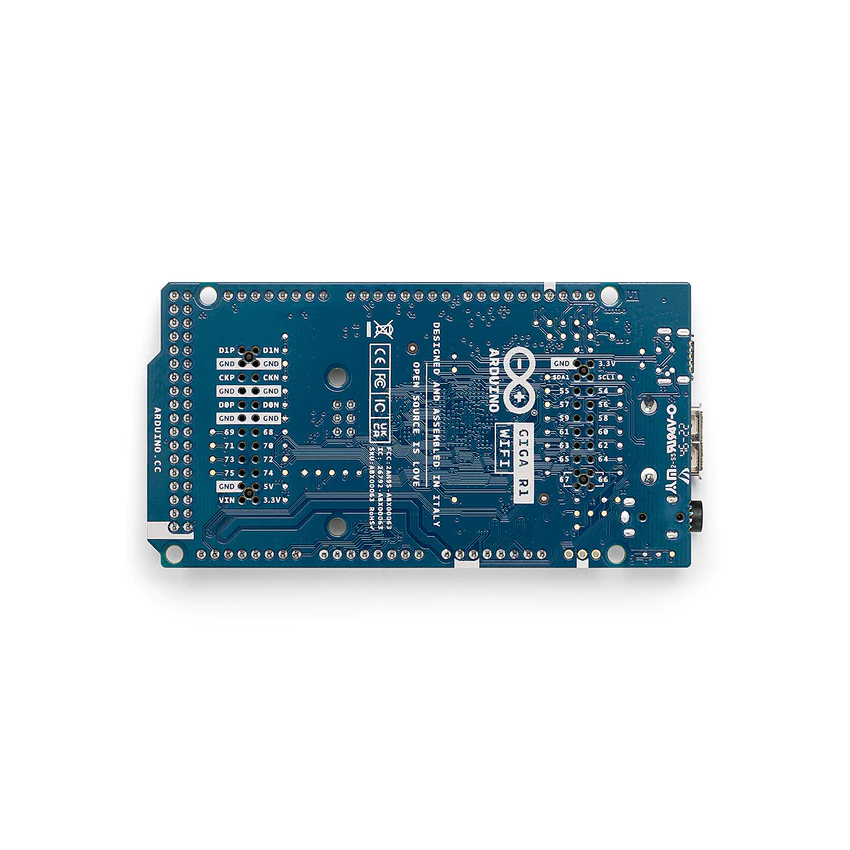

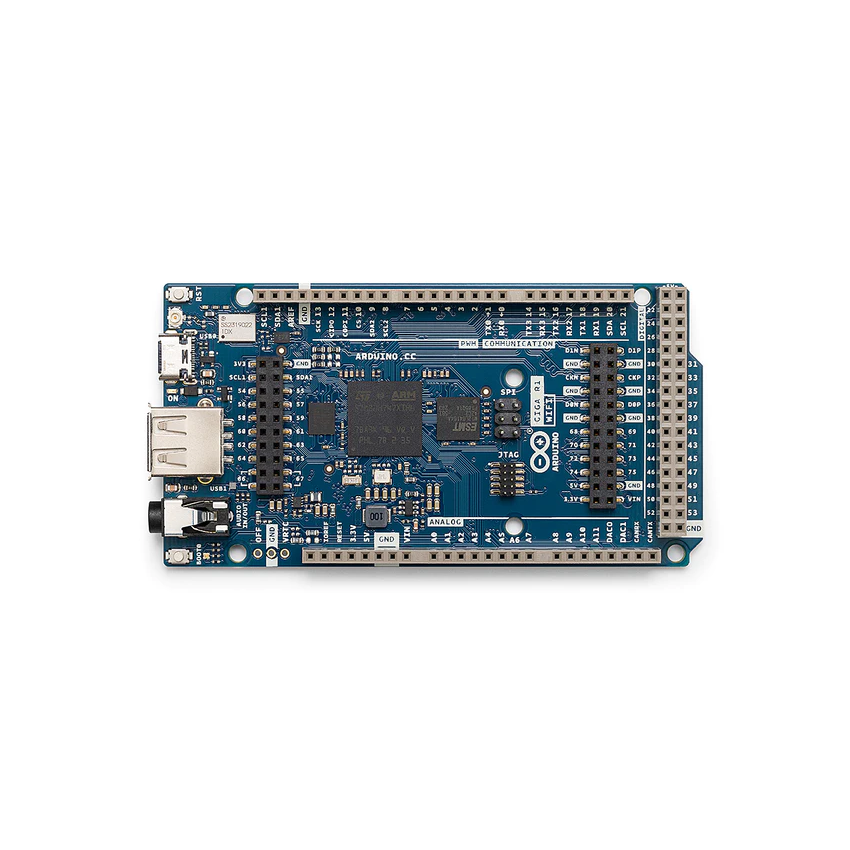

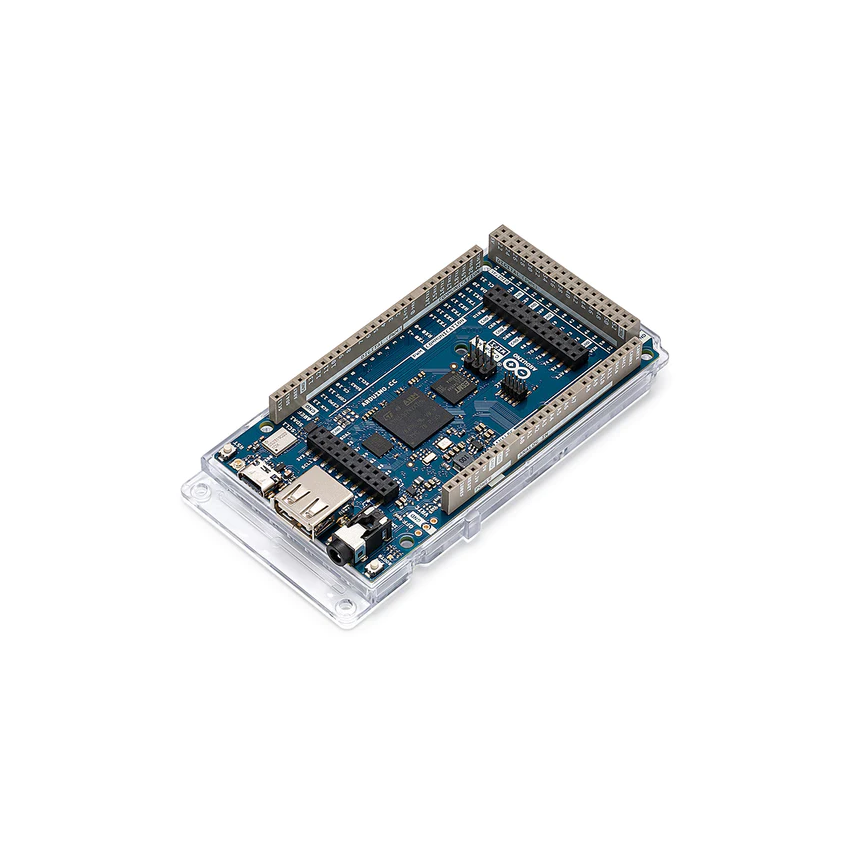

ABX00063 Arduino Giga R1 Wifi

<p>The Arduino GIGA R1 WiFi is crafted for creative makers aiming to elevate their projects. It's a versatile tool for gamers, artists, sound engineers, and innovators, offering advanced functionality in an affordable package with the same form factor as the popular Mega and Due boards.</p> <ul> <li><strong>Microcontroller (STM32H747XI):</strong> Equipped with a dual-core 32-bit microcontroller, it enables two cores (a Cortex®-M7 at 480 MHz and a Cortex®-M4 at 240 MHz) to operate concurrently. This allows you to run Micropython on one core and Arduino on the other, offering maximum flexibility.</li> <li><strong>Wireless Communication (Murata 1DX):</strong> Whether you require Wi-Fi® or Bluetooth®, the GIGA R1 WiFi handles both. You can easily connect to the Arduino IoT Cloud to monitor your projects remotely, and the ATECC608A secure element ensures your communications remain safe.</li> </ul> <h3>Tech Specs</h3> <ul> <li><strong>Board Name:</strong> Arduino® GIGA R1 WiFi</li> <li><strong>SKU:</strong> ABX00063</li> <li><strong>Microcontroller:</strong> STM32H747XI dual-core Cortex®-M7 + M4, 32-bit low-power Arm® MCU</li> <li><strong>Radio Module:</strong> Murata 1DX dual WiFi (802.11b/g/n 65 Mbps) and Bluetooth®</li> <li><strong>Secure Element:</strong> ATECC608A-MAHDA-T</li> <li><strong>USB Ports:</strong> USB-C® for Programming / HID, USB-A for Host (enabled with PA_15)</li> <li><strong>Digital I/O Pins:</strong> 76</li> <li><strong>Analog Input Pins:</strong> 12</li> <li><strong>DAC Pins:</strong> 2 (DAC0/DAC1)</li> <li><strong>PWM Pins:</strong> 12</li> <li><strong>Miscellaneous Pins:</strong> VRT & OFF pin</li> <li><strong>Communication Protocols:</strong> <ul> <li>UART: 4x</li> <li>I2C: 3x</li> <li>SPI: 2x</li> <li>CAN: Yes (requires an external transceiver)</li> </ul> </li> <li><strong>Connectors:</strong> <ul> <li>Camera: I2C + D54-D67</li> <li>Display: D1N, D0N, D1P, D0P, CKN, CKP + D68-D75</li> <li>Audio Jack: DAC0, DAC1, A7</li> </ul> </li> <li><strong>Power:</strong> <ul> <li>Circuit operating voltage: 3.3V</li> <li>Input voltage (VIN): 6-24V</li> <li>DC current per I/O pin: 8 mA</li> </ul> </li> <li><strong>Clock Speed:</strong> <ul> <li>Cortex® M7: 480 MHz</li> <li>Cortex® M4: 240 MHz</li> </ul> </li> <li><strong>Memory:</strong> 2MB Flash, 1MB RAM</li> <li><strong>Dimensions:</strong> <ul> <li>Width: 53 mm</li> <li>Length: 101 mm</li> </ul> </li> </ul>
