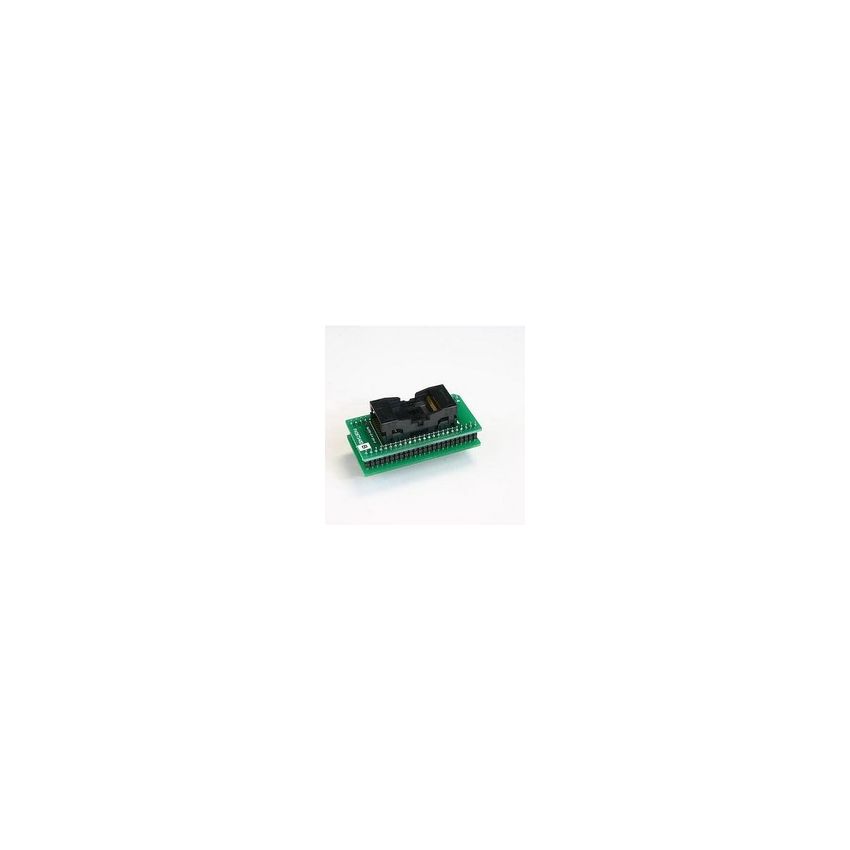

PA56TS48DB, Programming Adapter – 48-Pin TSOP to DIP Adapter

The PA56TS48DB is a high-quality programming adapter designed to facilitate the connection between 48-pin TSOP (Thin Small Outline Package) ICs and standard DIP (Dual In-line Package) programming sockets. It allows TSOP48 ICs to be programmed using programmers that support DIP48 interfaces. This adapter provides a reliable and efficient solution for engineers, developers, and repair technicians working with flash memory, microcontrollers, and other TSOP48 packaged ICs. The precision pin-mapping ensures stable electrical contact, reducing signal loss and increasing programming accuracy. Constructed with high-quality materials, the PA56TS48DB features a durable PCB, gold-plated contacts, and a precision-molded TSOP48 socket to ensure long-term usability and stable connections. The adapter is commonly used with universal programmers such as Xeltek, Batronix, and Hi-Lo programmers to support various flash memory chips, EEPROMs, and microcontrollers in TSOP48 packaging.

Key Features:

• TSOP48 to DIP48 Conversion – Allows 48-pin TSOP ICs to be programmed using DIP48-compatible programmers.
• High-Quality Socket & PCB – Gold-plated contacts and a durable multilayer PCB ensure reliable signal integrity.
• Universal Compatibility – Works with major universal IC programmers, including Xeltek, Batronix, and Hi-Lo.
• Easy to Use – No soldering required; simply insert the TSOP48 IC into the ZIF socket for programming.
• Supports Various ICs – Ideal for flash memory, EEPROMs, and microcontrollers packaged in TSOP48 format.
• Compact & Durable Design – Designed for long-term usability and repeated programming cycles.

Additional Specifications:

• Type: TSOP48 To DIP48 Programming Adapter
• For Use With/Related Products: Universal IC Programmers
