TL866II Plus Universal Programmer Kit – 12‑Adapter IC Programmer (USB)

The TL866II Plus (also branded as XGecu T48) is a high-performance USB universal IC programmer supporting over 15,000 chips—EEPROMs, FLASH (SPI/NOR/NAND), microcontrollers (PIC, AVR), GAL PLDs, CMOS/TTL logic devices, SRAM, and more . Powered entirely via USB (no external power needed), it offers fast read/write/verify speeds—up to 12 Mbps USB interface, capable of programming a 4 Mbit parallel FLASH in ~35 seconds . Compact, with a 40‑pin ZIF socket and ICSP header for in‑circuit programming, plus included adapters and a PLCC extractor, it's ideal for electronics repair, BIOS flashing, hobbyist projects, and small‑batch production .


Key Features

• Extensive Chip Support – Compatible with 15,000+ devices: serial (24, 25, 93, 95), parallel ROM/EPROM/Flash (26–50 series), AVR, PIC, GAL, SRAM, CMOS/TTL logic ICs, and more; supports up to 8 Gbit NAND & 512 Mbit NOR Flash .
• High-Speed USB Operation – USB 1.1/2.0 compatible, max 12 Mbps; programs 4 Mbit parallel FLASH in ~35 s; programs/reads 32 MByte chips in ~2–3 minutes .
• Universal 40‑Pin ZIF Socket – Easily accommodates DIP, SOP, TSOP, PLCC; includes ICSP header for in‑circuit programming (AVR, PIC, and others) .
• Complete Protection – Built-in over-voltage and 4-stage over-current safety on VCC/VPP; short-circuits trigger immediate cutoff without harming PC or programmer .
• Self-Testing & Pin Diagnostics – Automatic self-test on VPP, VCC, GND, and I/O pins; includes pin-contact check function .
• Low Power & Portable – Powered via USB, draws only 7–20 mA idle; minimal heat generation; portable (≈10 × 6 × 2.5 cm; ~140g) .
  Firmware & Mass Production Functions – Chip serial-number auto-increment via DLL API; supports multi-unit operation up to 4 devices per computer .

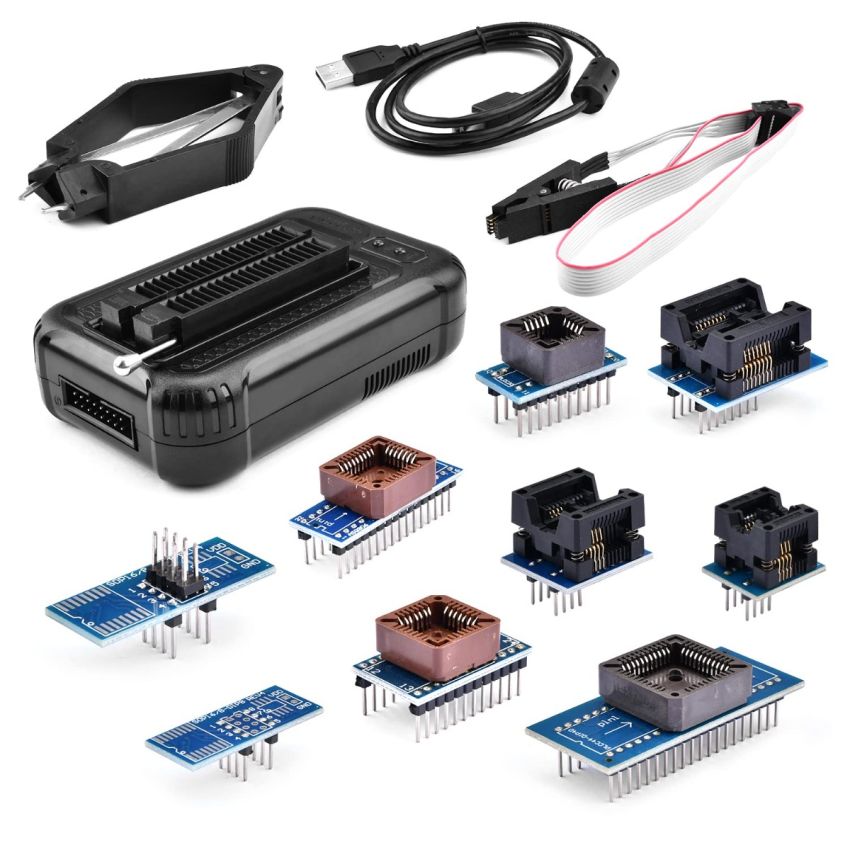

• Included Accessories – USB cable, SOP8 chip clip, PLCC extractor tool, and 12 adapters (e.g., PLCC20/28/32/44, SOP8, SOP16, DIP, SOIC)—ideal for a range of package types .
