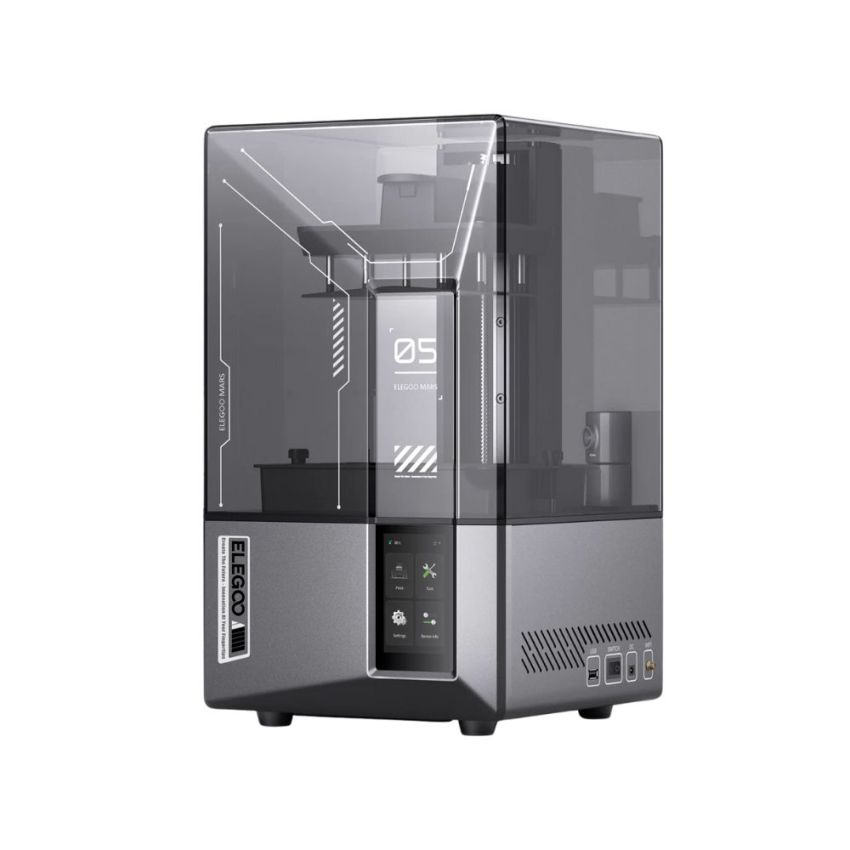

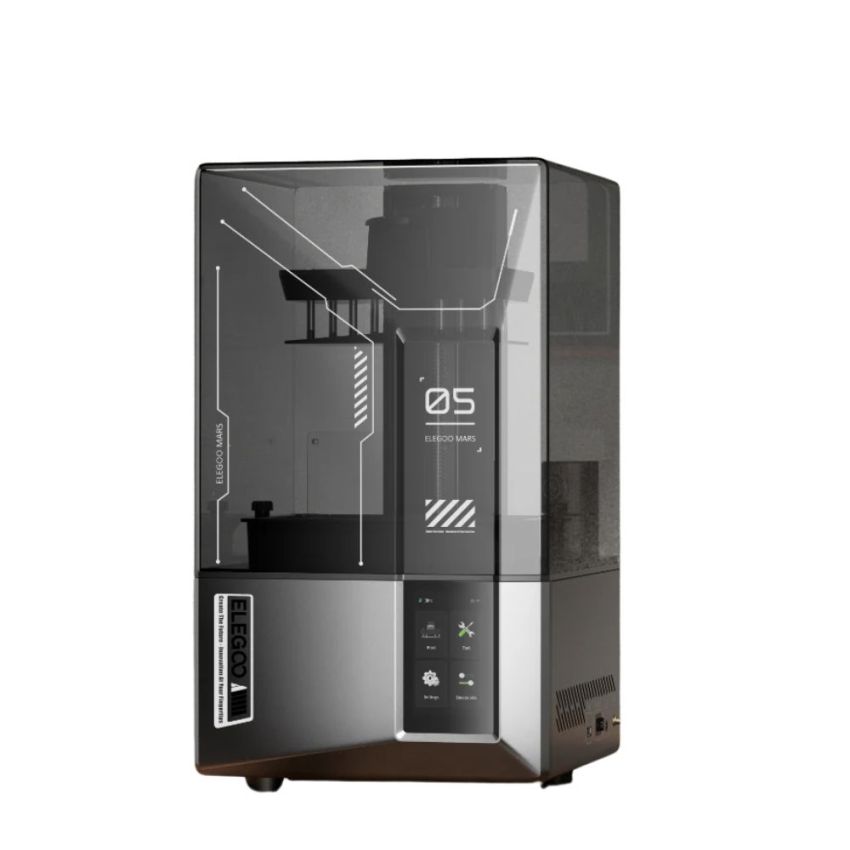

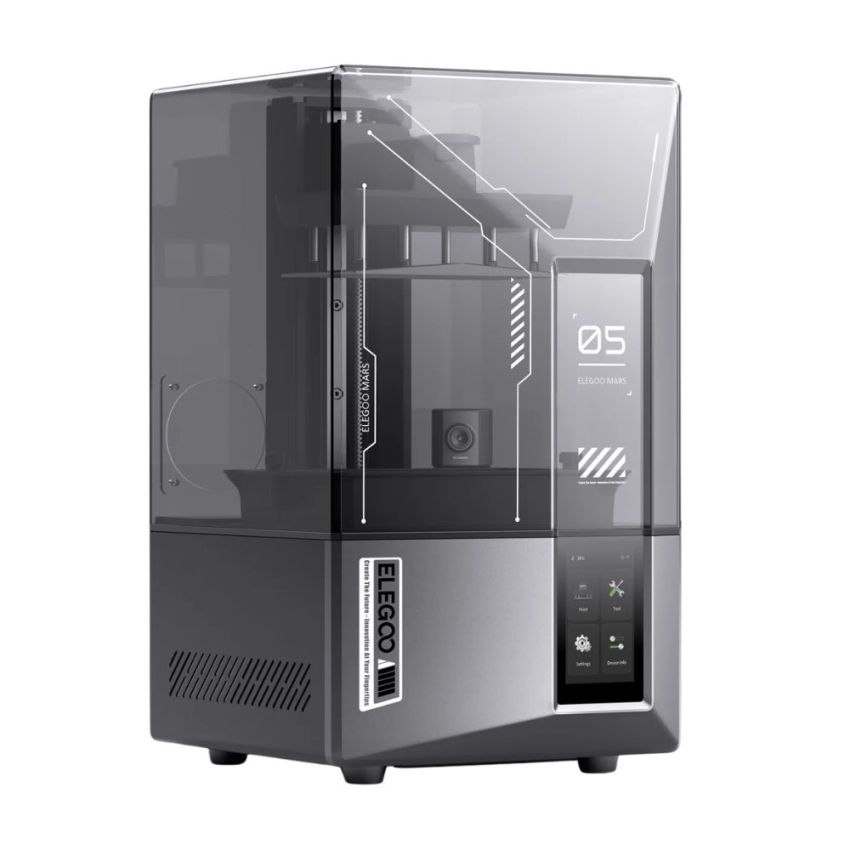

3D Printer ELEGOO Mars 5 Ultra

ELEGOO Mars 5 Ultra is a high-performance resin 3D printer designed to deliver exceptional accuracy, speed, and convenience. With advanced features such as AI camera monitoring, one-click automatic leveling, and a robust COB light source, it is ideal for precise 3D printing needs.

Key Features

■ Build Volume: 153.36 mm - 77.76 mm - 165 mm³
■ Printing Speed: Maximum 150 mm per hour
■ Layer Thickness: 0.01 mm - 0.2 mm
■ XY Resolution: 18 mm - 18 mm (8520 - 4320)
■ Z-Axis Accuracy: 0.02 mm
■ Printing Technology: MSLA
■ Light Source: COB Light Source (wavelength 405 nm)
■ LCD Screen Size: 7-inch 9K Mono LCD
■ LCD Screen Protector: 9H hardness tempered glass
■ Connection Method: USB Interface and WiFi
■ System: EL3D-4.0
■ Slicing Software: Chitubox
■ Operating Screen: 4.0-inch Capacitive Touch Screen
■ Languages: Chinese, English, Japanese, Dutch, Korean, French, German, Russian, Italian, Spanish, Turkish, Portuguese
■ Air Purifier:
USB connection unavailable
Compatible with Mars Mate air purifier
■ Other Functions:
Tilt Release Technology
One-Click Automatic Leveling
Self-Check and Overheat Protection
AI Camera (Empty Build Plate Detection, Warp Detection, Real-Time Monitoring, and Time-Lapse Recording)
Smart Mechanical Sensor (Resin Shortage Alarm, Residue Detection Alarm, and Leveling Failure Alarm)
Power-Loss Resume Printing
■ Resin Compatibility: Supports most resins on the market, including water-washable, standard, ABS-like, and plant-based resins
■ Power Requirements: 100-240 V 50/60 Hz, 24 V 3 A
■ Net Weight: 8.8 kg
■ Gross Weight: 10.8 kg
