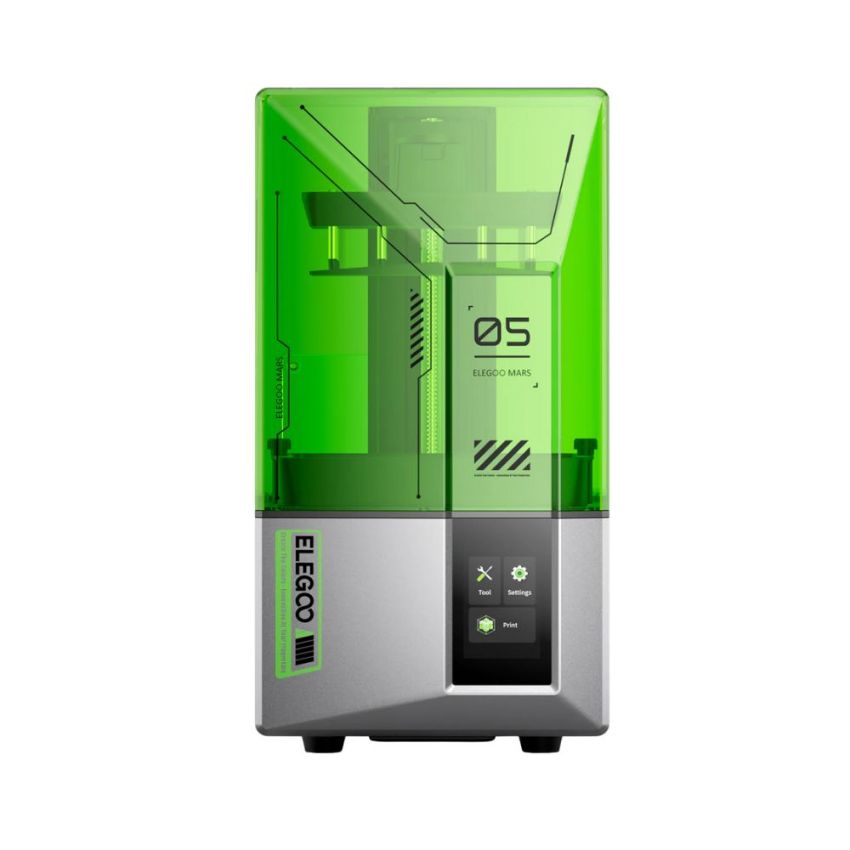

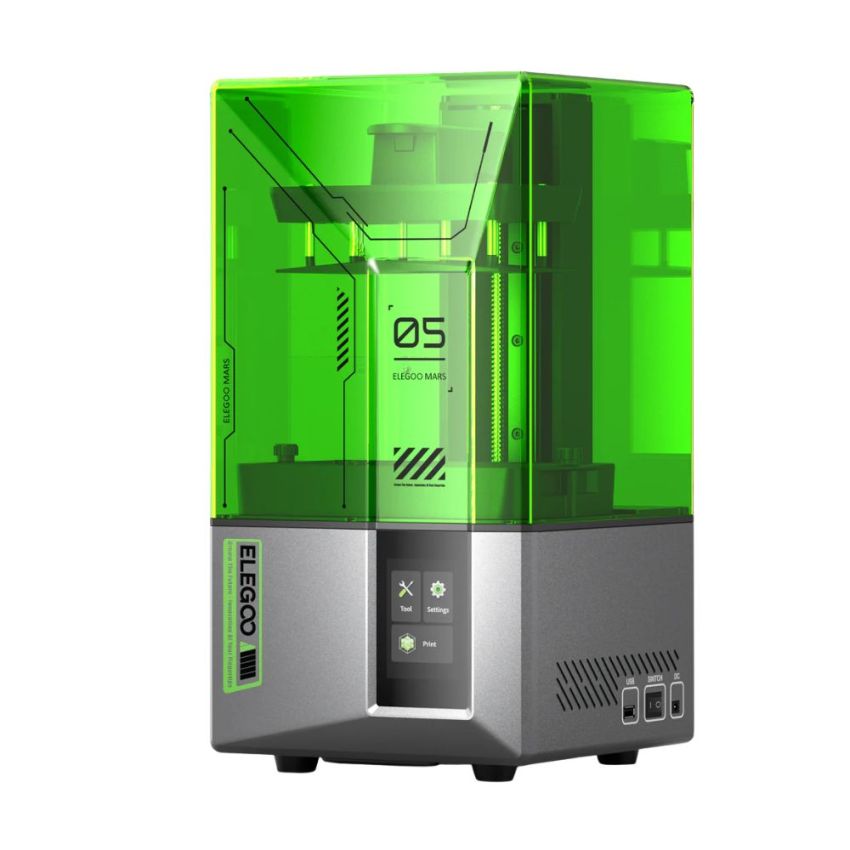

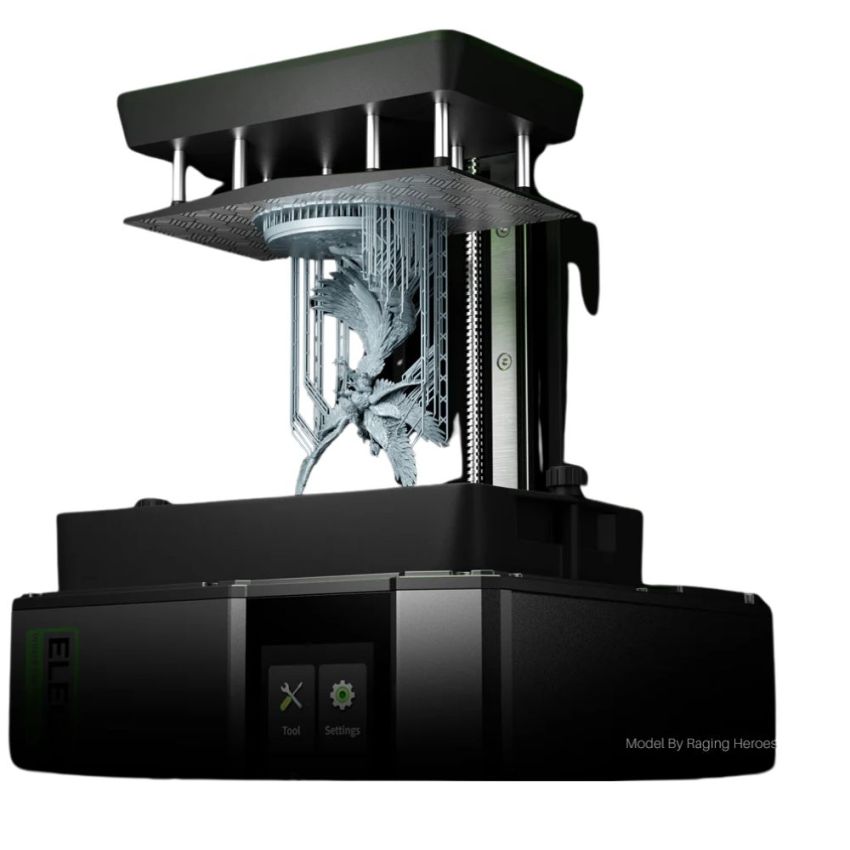

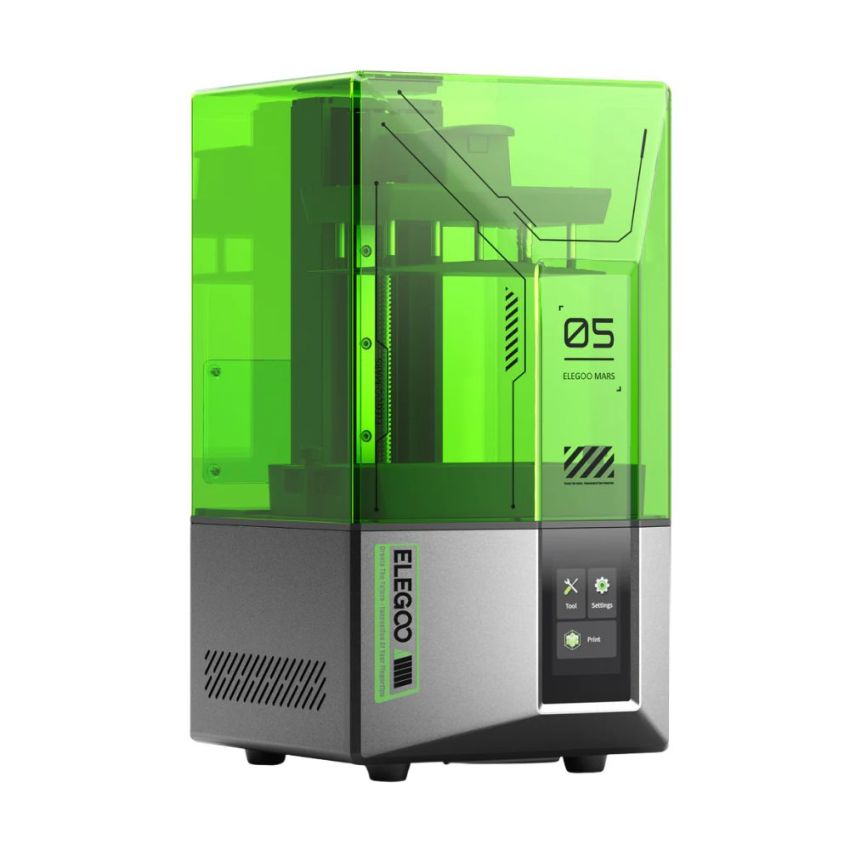

3D Printer ELEGOO Mars 5 3D Printer

The ELEGOO Mars 5 is a high-precision resin 3D printer built for users seeking advanced features and reliable performance. With its optimized design and robust capabilities, it’s perfect for professional and personal use.

Key Features

■ Build Volume: 143.43 mm - 89.6 mm - 150 mm³
■ Printing Speed: Up to 70 mm per hour
■ Layer Thickness: 0.01 mm - 0.2 mm
■ XY Resolution: 35 x 35 µm (4098 x 2560)
■ Z-Axis Accuracy: 0.02 mm
■ Printing Technology: MSLA
■ Light Source: COB Light Source (wavelength 405 nm)
■ LCD Screen Size: 6.6-inch 4K Mono LCD
■ LCD Screen Protector: PET scratch-resistant film
■ Connection Method: USB interface
■ System: EL3D-3.0.1
■ Slicing Software: Compatible with Chitubox and Voxeldance Tango
■ Operating Screen: 3.5-inch resistive touch screen
■ Languages Supported: Chinese, English

■ Additional Functions
■ One-click automatic leveling
■ Self-check and overheat protection
■ Smart mechanical sensor with:
○ Resin shortage alarm
○ Residue detection alarm
○ Leveling failure alarm

■ Resin Compatibility
■ Supports various resin types:
○ Water-washable
○ Standard
○ ABS-like
○ Plant-based

■ Power Requirements
■ 100-240 V 50/60 Hz, 24 V 3 A

■ Weight
■ Net Weight: 6.6 kg
■ Gross Weight: 8.6 kg
