Description :

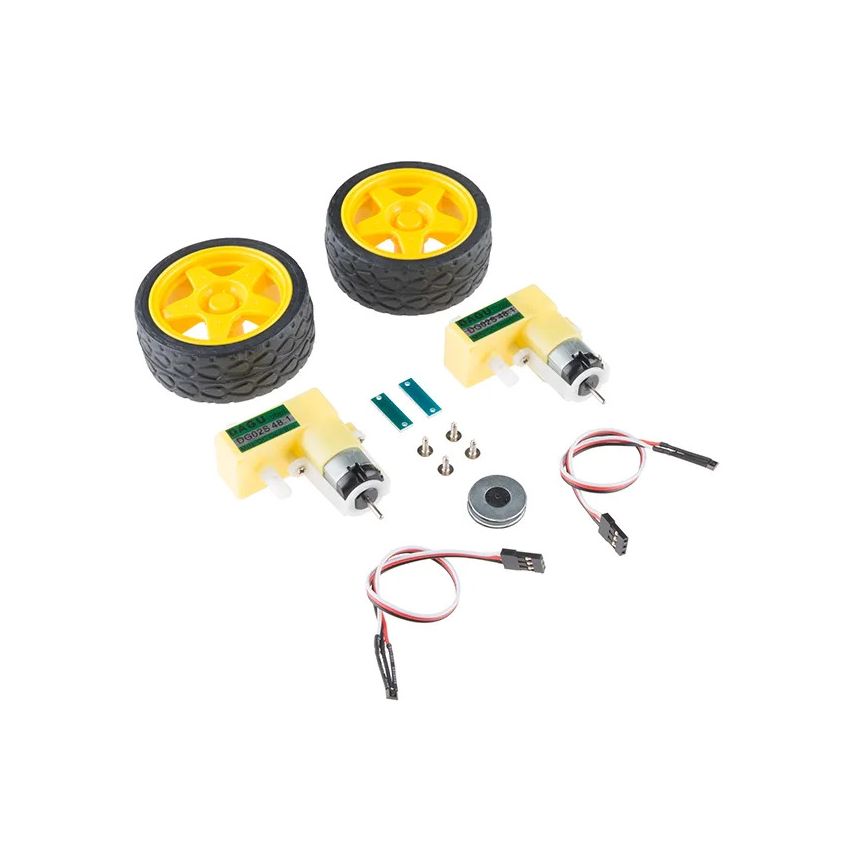

• Hobby Motor and Encoder Kit from DAGU
  Includes three pairs of items: wheels, gearmotors, and wheel encoders
  Perfect for beginners or as extra parts for your next project
  Offset gear motors require a voltage of 3-6V, no load current of 200mA, stall current of 3A@6V (1.5A@3V)
  Gearbox ratio of 48:1, wheel speed of 65RPM at 3V unloaded
  Wheel encoders require a supply voltage of 3-24V, supply current of 4mA
  Consists of two neodymium 8-pole magnets with rubber hubs and two hall-effect sensors
  Terminated with 150mm cables and 3-pin female servo headers

The kit includes:

• 2x DG02S Mini DC Gear Motor:
  •2x Wheel - 65mm
  •1x Wheel Encoder Kit (Set of 2)

Specifications:

• -Gear Motor:
  •Voltage: 3V – 6V
  •No Load Current: 200mA
  •Stall Current: 3A @ 6V (1.5A @ 3V)
  •Gearbox Ratio: 48:1
  •Wheel Speed: 65rpm @ 3V unloaded (Recommended)
  -Wheel Encoder:
  •Voltage: 3V – 24V with reverse polarity protection
  •Encoder Type: 8-pole neodymium magnet and hall-effect sensor
  •Encoder Output: Open drain with short circuit protection
