DESCRIPTION:

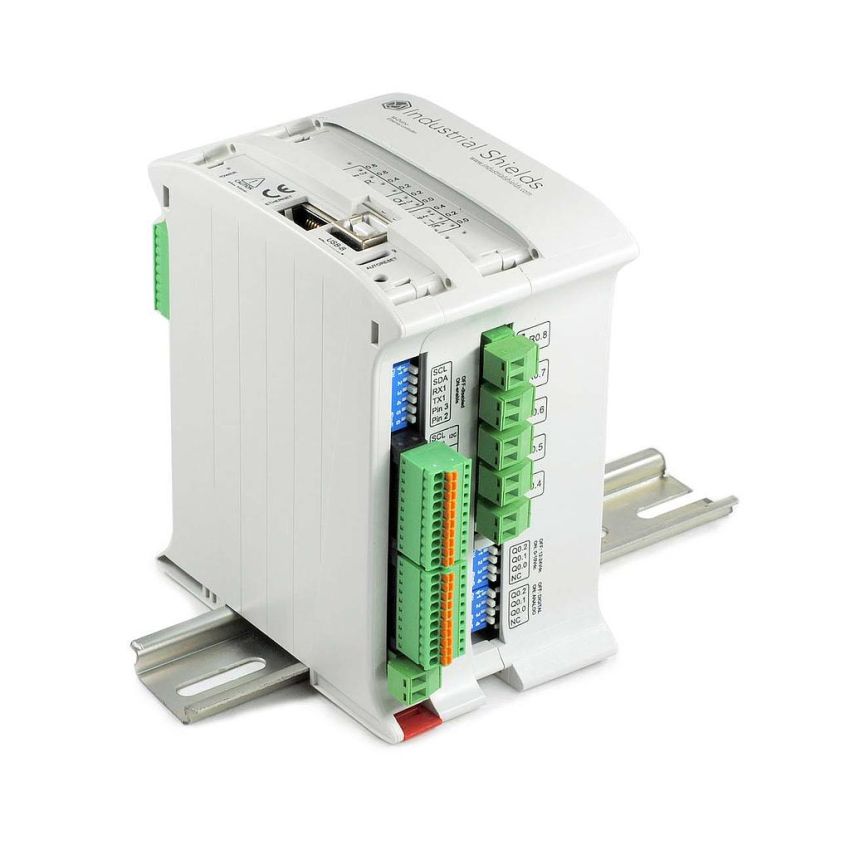

- Modular PLC Arduino
This is the first equipment based on the Arduino technology designed for a professional use. This industrial controller has 17I/Os. It also contains several communication ports which provide more flexibility and control. The industrial arduino M-DUINO family offers the possibility to expand up to 127 modules through I2C, which means that you can have until 7100 Inputs / Outputs in Master-Slave connections, additionally to sensors, etc…

- Programming Software
This controller arduino can be programmed using the Arduino IDE platform. See the Documentation menu below to download the software for free.

- Instantaneous connection and coding for industrial applications
The M-DUINO is programmed through the USB ports. This industrial PLC can also be programed through Ethernet port remotely. This offers and immediate access to program, mantain and control. Also you can continuously monitor the status for all the variables, inputs, outputs, etc. It is compatible with the Ardbox and the Touchberry Pi with instantaneous connection.

SPECIFICATIONS:

- PLC measures 101X119.5x119.3
- DIN Rail mounting
- Max. consum. 1.5A
- Power Supply Voltage (Vdc) Range 12-24
- Power Consumption (VAC max.) 30
- Operating Temperture ºC 0ºC-60ºC
- Operating Temperature ºF 32ºF-140ºF
- Operating Relative Humidity % (no condensation) 10%-90%
- Package Size 13cm x 14cm x 13cm
- Packaging Box
- ECCN Number EAR99H
- HTS Code 8537.10.10.90
- Country of Origin Spain
- STATIC Sensitive NO
- Moisture Sensitivity Level (MSL) MSL 1 - Unlimited
- Lead Free
- RoHS Compliant by Exemption? NO
- Does Part Contain Lithium? YES
