Description:

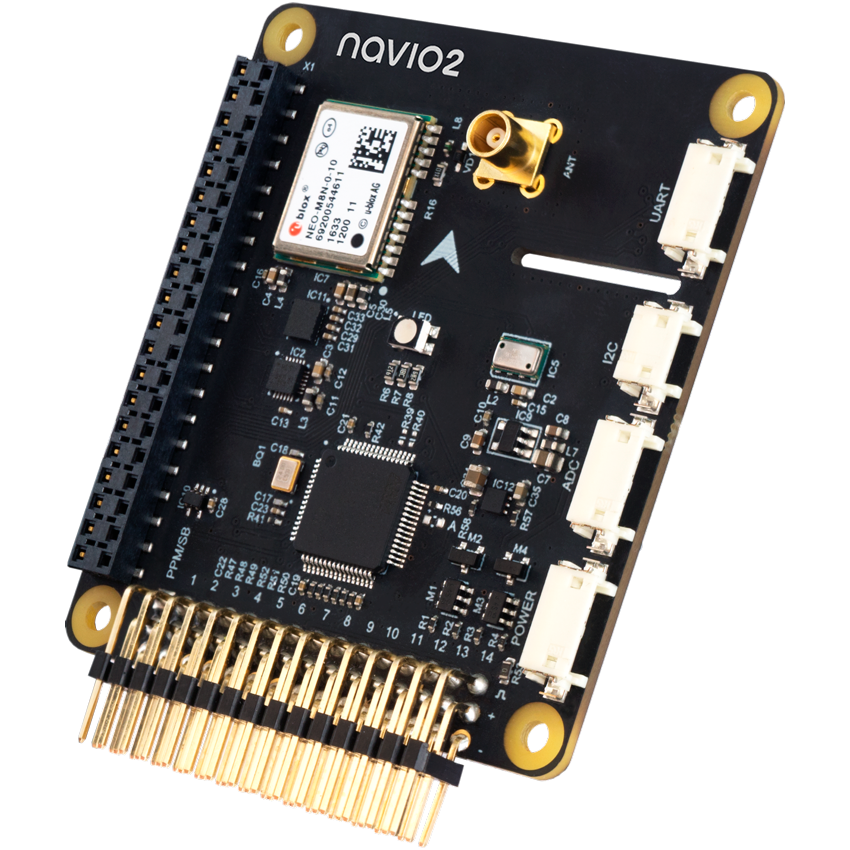

Navio2 is a hardware and software platform for creating drone autopilots and robotics applications. It provides the necessary components for building a flight controller, including a GPS module, barometer, and IMU sensors. Navio2 is based on the Raspberry Pi platform and supports the Raspberry Pi as the main processing unit. The platform provides a range of features, including automatic flight stabilizationization, position control, and waypoint navigation. It also supports a variety of programming languages and software frameworks, making it easy for developers to create custom autopilot applications. With its compact design, Navio2 is suitable for a wide range of drone and robotics projects, and is designed to help makers and developers bring their ideas to life.

Specifications:

-Raspberry Pi compatibility
-GNSS receiver (tracks GPS, GLONASS, Beidou, Galileo, and SBAS satellites) with external antenna and MCX connector
-RC I/O co-processor (accepts PPM/SBUS input, provides 14 PWM output channels)
-Dual IMU (accelerometers, gyroscopes, and magnetometers for orientation and motion sensing)
-Triple redundant power supply (with overvoltage protection and power module port for voltage and current sensing)
-Extension ports (exposed ADC, I2C, and UART interfaces)
-High-resolution barometer (for altitude sensing with 10 cm resolution)
-Raspberry PI 4B included
