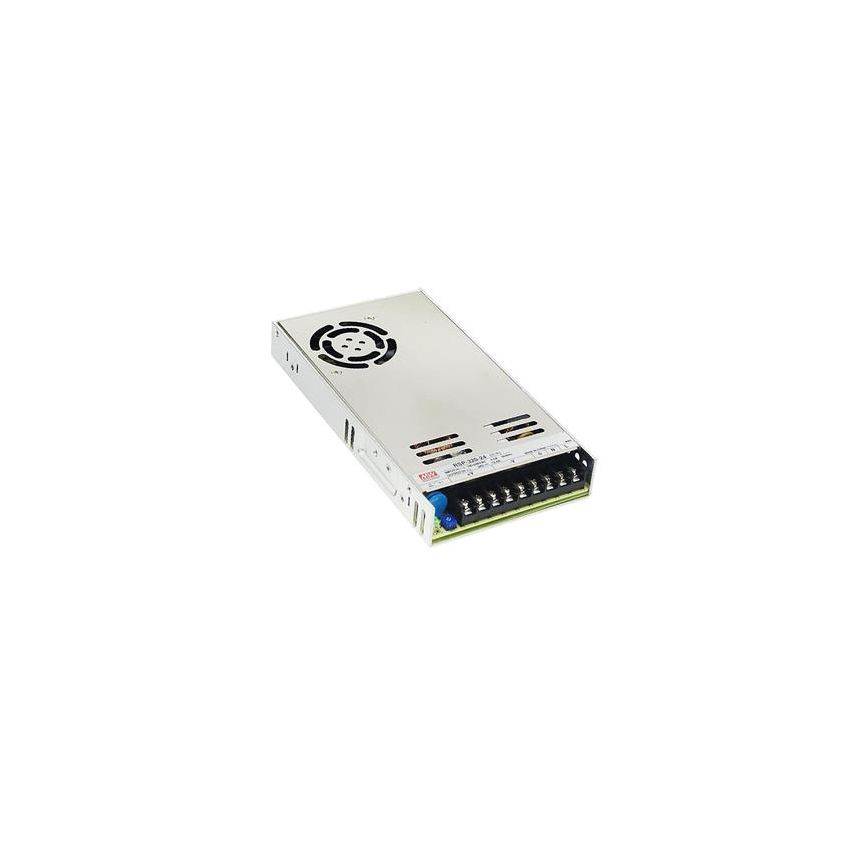

RSP-320-24, 320W AC-DC Enclosed Power Supply, 24V Output, Active PFC

The RSP-320-24 is a 320W single-output enclosed AC-DC power supply from Mean Well, delivering a stable 24V DC output at up to 13.4A. Designed for industrial applications, it features active Power Factor Correction (PFC) to improve energy efficiency and reduce harmonic distortion. Its compact 1U low-profile design (30mm height) allows for easy integration into systems with limited space. The unit operates over a universal AC input range of 88 to 264VAC, making it suitable for use worldwide. Comprehensive protection mechanisms, including safeguards against short circuits, overloads, overvoltages, and overtemperature conditions, ensure reliable operation. The built-in DC fan with speed control provides effective cooling, enhancing the power supply's longevity and performance. ​

Key Features:

• High Efficiency: Achieves up to 90% efficiency, reducing energy loss and heat generation.​
• Active PFC Function: Power Factor Correction (PFC) greater than 0.95 at 230VAC input, enhancing power quality.​
• Low Profile Design: Compact 1U height (30mm) suitable for space-constrained applications.​
• Comprehensive Protections: Built-in safeguards against short circuit, overload, overvoltage, and overtemperature conditions.​
• Universal AC Input: Operates within a wide input voltage range of 88 to 264VAC, accommodating global power standards.​
• Forced Air Cooling: Equipped with a DC fan featuring speed control for efficient thermal management.​

Additional Specifications:

• Type: AC-DC Enclosed Power Supply
• Output Current: 13.4 A
• Output Voltage: 24 V DC
• Output Power: 321.6 W
• Input Votlage: 88 – 264 VAC
