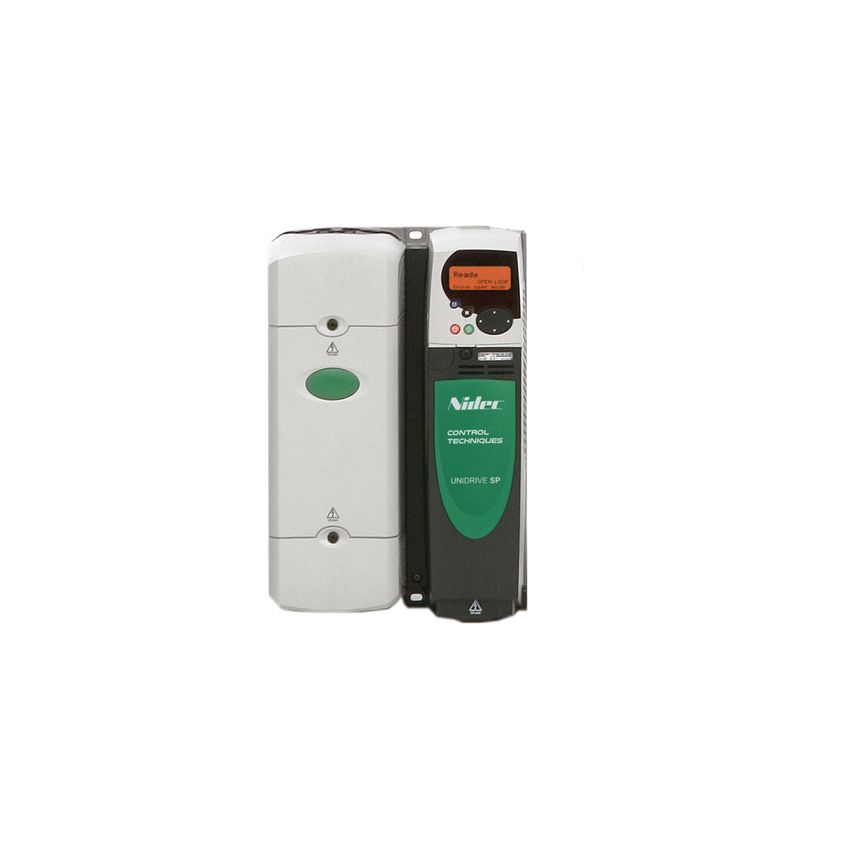

SP3504, Unidrive SP AC/Servo Drive, 10 HP, 500/575V AC

The SP3504 from Control Techniques' Unidrive SP series is a high-performance AC/Servo drive engineered for a wide range of industrial applications. With support for multiple control modes, it provides exceptional flexibility and precision in motor control. The drive operates efficiently on a 3-phase 500/575 V AC supply, delivering up to 10 HP with a normal duty output current of 11 A. Its robust IP20-rated enclosure ensures reliable performance in demanding environments. Additionally, the SP3504 offers extensive I/O options and supports various communication protocols, making it a versatile solution for complex automation systems.

Key Features:

• Versatile Control Modes: Supports Open Loop Vector, Closed Loop Induction Motor, Regenerative, Servo, V/Hz, and Rotor Flux Control.
• High Performance: Delivers up to 10 HP with a normal duty output current of 11 A.
• Flexible Input Voltage: Operates on a 3-phase supply voltage range of 500 to 575 V AC.
• Robust Design: Enclosure rated at IP20, suitable for various industrial environments.
• Comprehensive I/O Options: Equipped with multiple analog and digital inputs/outputs for diverse application needs.
• Advanced Communication: Offers compatibility with various communication option cards, including Modbus RTU and RS-485.

Additional Specifications:

• Type: AC Variable Frequency And Servo Drive
• Output Current: 11A
• Output Voltage: 500,575Vac
• Output Power: 10Hp
• Input Votlage: 500,575Vac
