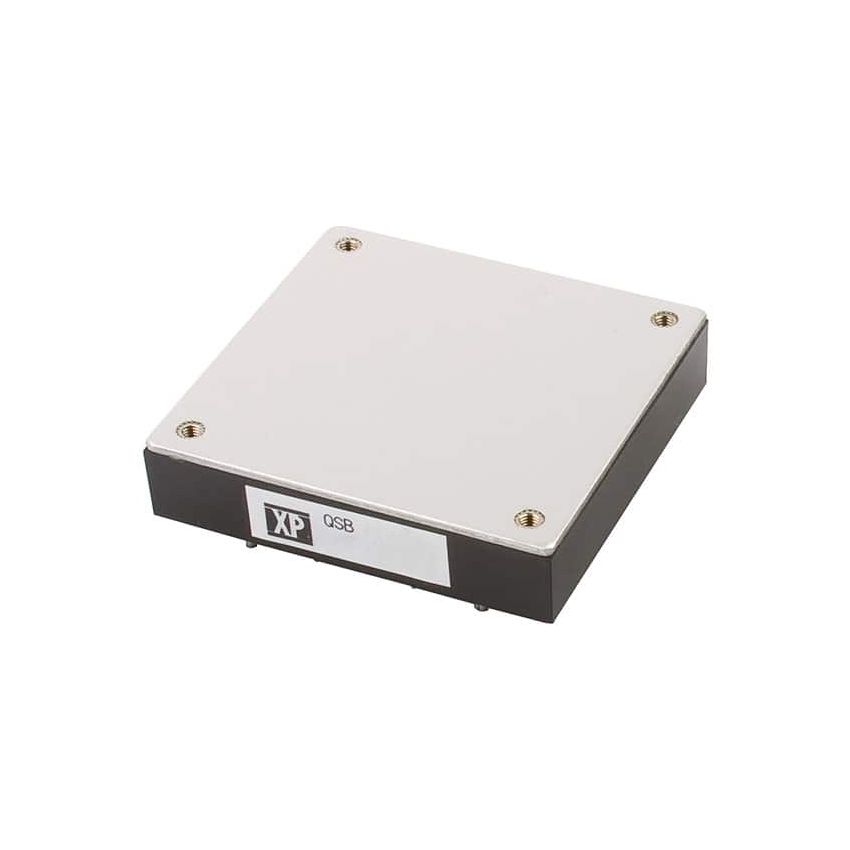

QSB15024S24, 150W Isolated DC-DC Converter, 24V Output, 6.5A, 9-36V Input

The QSB15024S24 is a 150W isolated DC-DC converter from XP Power, delivering a regulated 24V DC output at up to 6.5A. Designed for industrial and telecommunications applications, it operates over a wide input voltage range of 9V to 36V DC, making it suitable for various power sources. The converter boasts high efficiency of up to 88%, reducing energy loss and heat. Its integral baseplate facilitates conduction cooling, enhancing thermal management in space-constrained environments. The output voltage can be trimmed ±10% to accommodate specific application needs. Remote On/Off control allows for flexible power management, and the converter includes comprehensive protection features such as overcurrent, overtemperature, and overvoltage safeguards, ensuring reliable operation. ​

Key Features:

• Wide Input Voltage Range: Operates from 9V to 36V DC, accommodating various power sources.​
• High Efficiency: Achieves up to 88% efficiency, minimizing energy loss and heat generation.​
• Baseplate Cooling: Integral baseplate design facilitates conduction cooling, enhancing thermal management.​
• Output Voltage Trim: Allows ±10% adjustment of the output voltage to meet specific application requirements.​
• Remote On/Off Control: Supports remote operation, enabling flexible power management.​
• Comprehensive Protections: Includes safeguards against overcurrent, overtemperature, and overvoltage conditions.​

Additional Specifications:

• Converter Type: Isolated DC-DC Converter
• Input Voltage: 9V – 36V DC
• Output Voltage: 24V DC
• Max Output Current: 6.5 A
