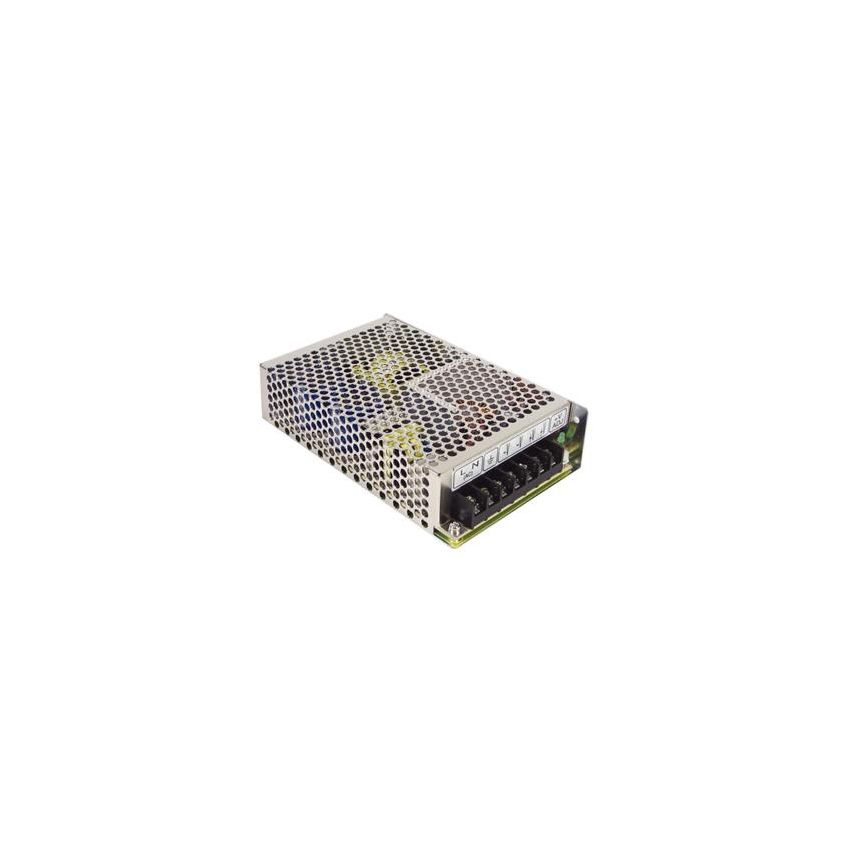

RT-85D, 85W Triple Output Enclosed Switching Power Supply, 5V 6A, 24V 2A, 12V 1A, Universal Input

The Mean Well RT-85D is an 85W triple output enclosed switching power supply designed to provide reliable power to multiple circuits within a system. It offers three regulated outputs: 5V at 6A, 24V at 2A, and 12V at 1A, making it suitable for applications requiring multiple voltage levels. The power supply operates over a universal AC input range of 88 to 264 VAC and also supports 125 to 373 VDC input, accommodating various power sources globally. With an efficiency of up to 79%, the RT-85D ensures energy-efficient performance, reducing operational costs and thermal management requirements. Its compact enclosed design, measuring 159mm x 97mm x 38mm, allows for easy integration into different systems while providing protection against dust and other environmental factors. The power supply includes comprehensive protection features such as overload, overvoltage, and short-circuit protections, enhancing system reliability and safety. Certified to UL62368-1 and EN62368-1 standards, the RT-85D meets the safety requirements for information technology equipment, ensuring compliance in various applications. ​

Key Features:

• Triple Output Channels: Provides three regulated DC outputs: 5V at 6A, 24V at 2A, and 12V at 1A, offering versatility for powering multiple circuits.​
• Universal AC Input: Accepts input voltages from 88 to 264 VAC and 125 to 373 VDC, supporting global applications without the need for voltage selection.​
• High Efficiency: Achieves up to 79% efficiency, reducing energy consumption and minimizing heat generation.​
• Compact Enclosed Design: Measures 159mm x 97mm x 38mm, facilitating easy integration into various systems while providing protection against environmental factors.​
• Comprehensive Protections: Equipped with overload, overvoltage, and short-circuit protections, ensuring reliable and safe operation.​
• Compliance with Safety Standards: Certified to UL62368-1 and EN62368-1 standards, meeting requirements for information technology equipment.​

Additional Specifications:

• Type: AC-DC Triple Output Enclosed Switching Power Supply
• Output Current: 6A, 2A, 1A
• Output Voltage: 5V, 24V, 12V
• Output Power: 85 W
• Input Votlage: 88 – 264 VAC or 125 – 373 VDC
