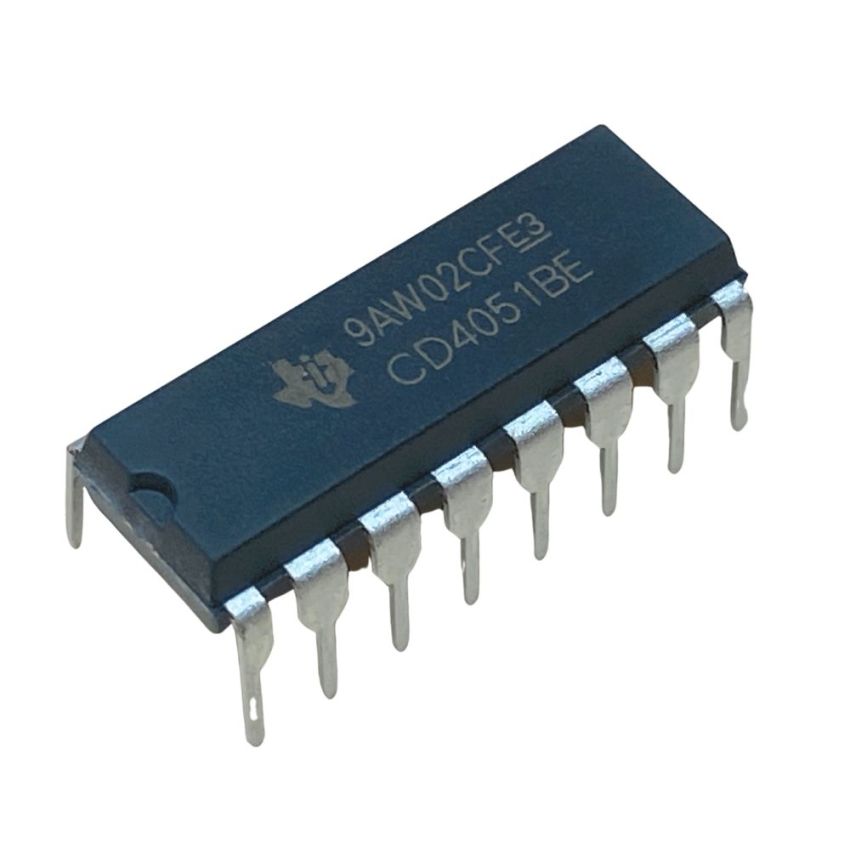

CD4051BE - 1 Circuit IC Switch, 8:1 ,240Ω ,16-PDIP

The CD4051BE is a versatile single 8-channel analog multiplexer/demultiplexer IC by Texas Instruments, designed for signal gating, digital-to-analog conversion, and general switching applications. This IC uses CMOS technology for low power dissipation and high noise immunity. With a wide input voltage range of 3V to 20V and 240Ohm ON resistance, the CD4051BE effectively manages signals in applications requiring low leakage and low ON resistance.

It is encapsulated in a 16-pin PDIP package, making it suitable for through-hole mounting and ideal for use in analog signal multiplexing and demultiplexing in industrial and consumer applications.

Key Features :

• Wide Operating Voltage Range: Supports input voltages from 3V to 20V, compatible with various analog and digital systems.
• Low ON Resistance: 240Ohm typical ON resistance ensures minimal signal degradation.
• High OFF Resistance: Minimal leakage with high OFF resistance, maintaining signal integrity.
• Logic Level Conversion: Allows seamless interfacing with digital control circuits for flexible application design.
• ESD Protection: Enhanced durability with +/-2000V HBM and +/-500V CDM ratings.
• 16-Pin PDIP Package: Easy integration in designs requiring through-hole mounting and simple prototyping.
