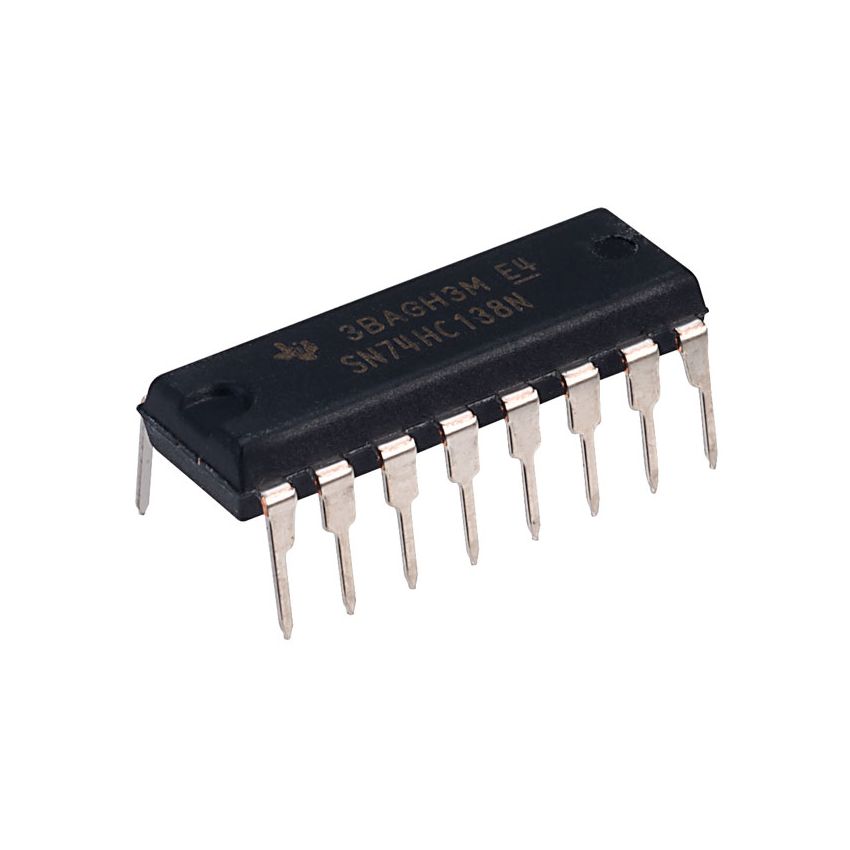

SN74HC138N,3-to-8 Line Decoder,Demultiplexer,DIP-16

The SN74HC138N is a high-performance 3-to-8 line decoder/demultiplexer that offers efficient data routing and memory decoding. With three enable inputs, it allows for easy cascading and control, ensuring flexibility in complex systems. Its active low outputs and high-speed performance make it a versatile choice for digital circuits.

Encased in a DIP-16 package, the SN74HC138N supports a wide operating voltage range of 2V to 6V, making it compatible with both CMOS and TTL logic families. Its low power consumption and robust design make it suitable for industrial, consumer, and educational applications.

• 3-to-8 Line Decoding: Converts 3 binary inputs into 8 active low outputs, ideal for memory decoding and signal routing.
• Multiple Enable Inputs: Supports cascading and simplifies interfacing with other logic systems.
• Wide Voltage Range: Operates efficiently between 2V and 6V, compatible with CMOS and TTL levels.
• Compact DIP-16 Package: Designed for through-hole PCB layouts.
• High-Speed Operation: Delivers a typical propagation delay of 15 ns at 5V supply.
• Low Power Consumption: Maximum static current consumption of 80 uA.
