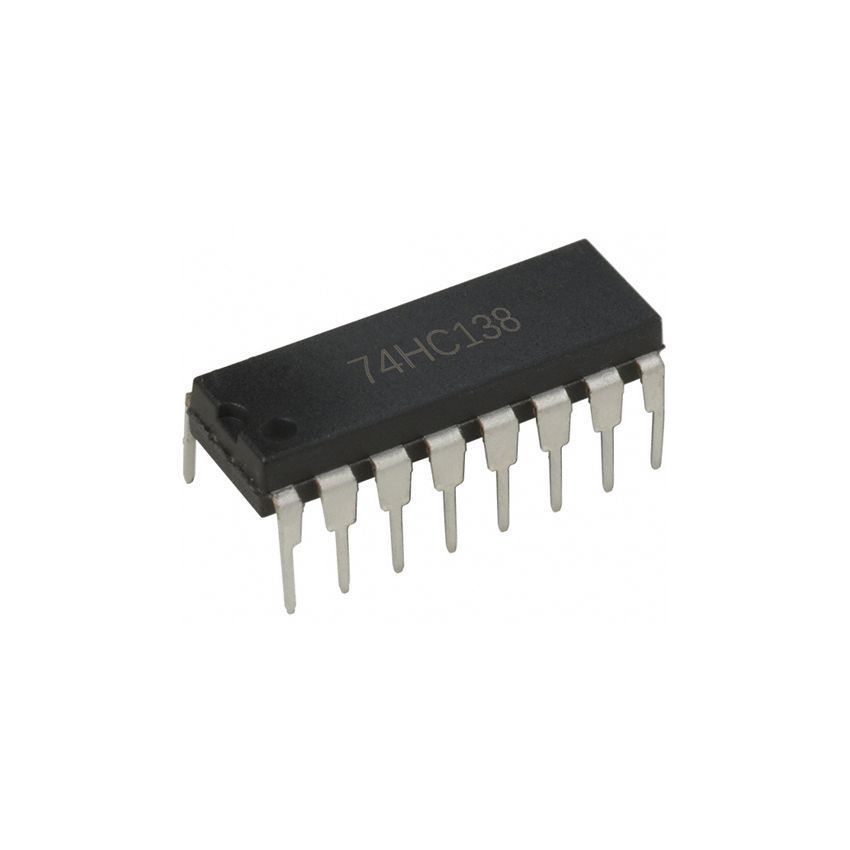

74HC138,3-to-8 Line Decoder,Demultiplexer,SOIC-16

The 74HC138 is a high-speed CMOS 3-to-8 line decoder/demultiplexer designed for memory decoding, signal routing, and general-purpose digital applications. It features three binary address inputs and eight mutually exclusive active LOW outputs. The IC's enable inputs allow for flexible cascading, enabling it to be used in larger decoder systems.

Encased in a SOIC-16 package, the 74HC138 is optimized for surface-mount PCB designs, providing reliable operation over a wide voltage range of 2V to 6V. It ensures compatibility with CMOS logic levels and offers high-speed performance for industrial and consumer applications.

• 3-to-8 Line Decoding: Converts 3 binary inputs into 8 active LOW outputs.
• Demultiplexing Capability: Enables signal distribution in complex systems.
• Multiple Enable Inputs: Allows for cascading and expansion to larger decoders.
• Wide Voltage Range: Operates from 2V to 6V, compatible with CMOS logic levels.
• Compact SOIC-16 Package: Optimized for surface-mount PCB designs.
• High-Speed Performance: Maximum propagation delay of 41 ns at 2V supply.
