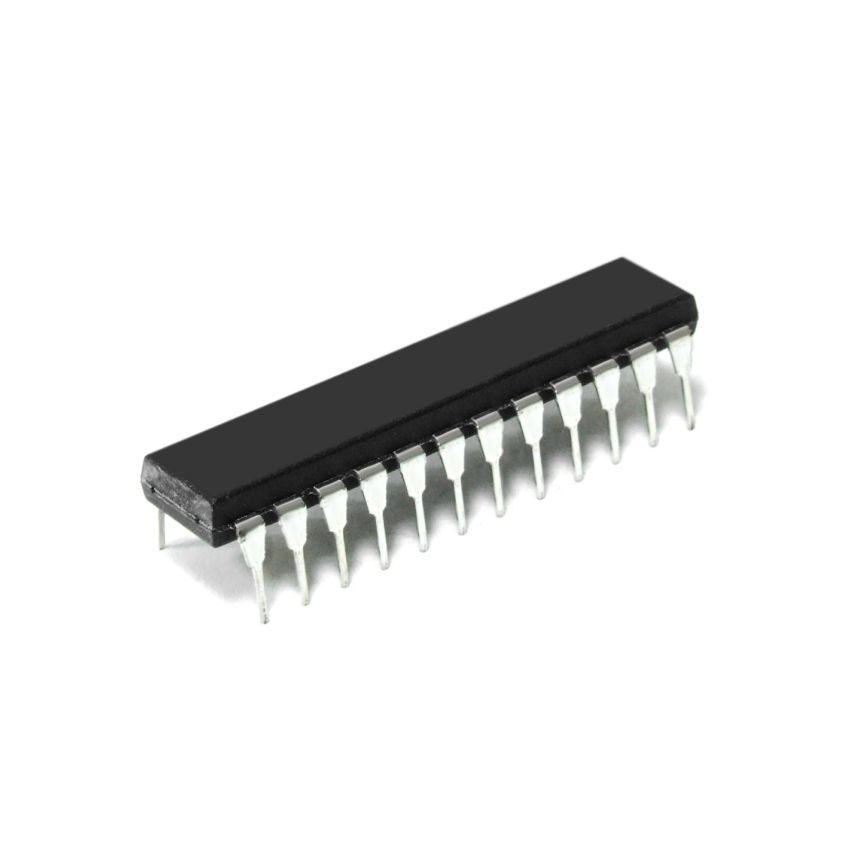

SN74HC154NT, 4-to-16 Line Decoder/Demultiplexer, DIP-24, 2V-6V

The SN74HC154NT is a high-speed CMOS 4-to-16 line decoder/demultiplexer, designed for applications requiring address decoding, data distribution, and function selection. The IC selects one of sixteen outputs based on four binary-coded inputs, with all outputs being active-low. Operating within a voltage range of 2V to 6V, the SN74HC154NT is fully compatible with CMOS and TTL logic families. Its low power dissipation and high-speed operation make it an excellent choice for memory decoding, digital display controls, and microprocessor applications. With its DIP-24 package, the SN74HC154NT is ideal for through-hole PCB designs and breadboard prototyping, ensuring seamless integration into logic circuits.

• 4-to-16 Line Decoder/Demultiplexer – Converts four binary-coded inputs into one of sixteen active-low outputs.
• Wide Voltage Range – Operates between 2V and 6V, ensuring compatibility with various logic circuits​
• Active-Low Outputs – Ensures negative logic compatibility for digital signal processing.
• High Fan-Out Capability – Can drive up to 10 low-power Schottky (LS) loads.
• Low Power Consumption – CMOS design provides efficient power usage for embedded systems.
• DIP-24 Package for Easy Integration – Through-hole format for breadboarding and PCB mounting.
