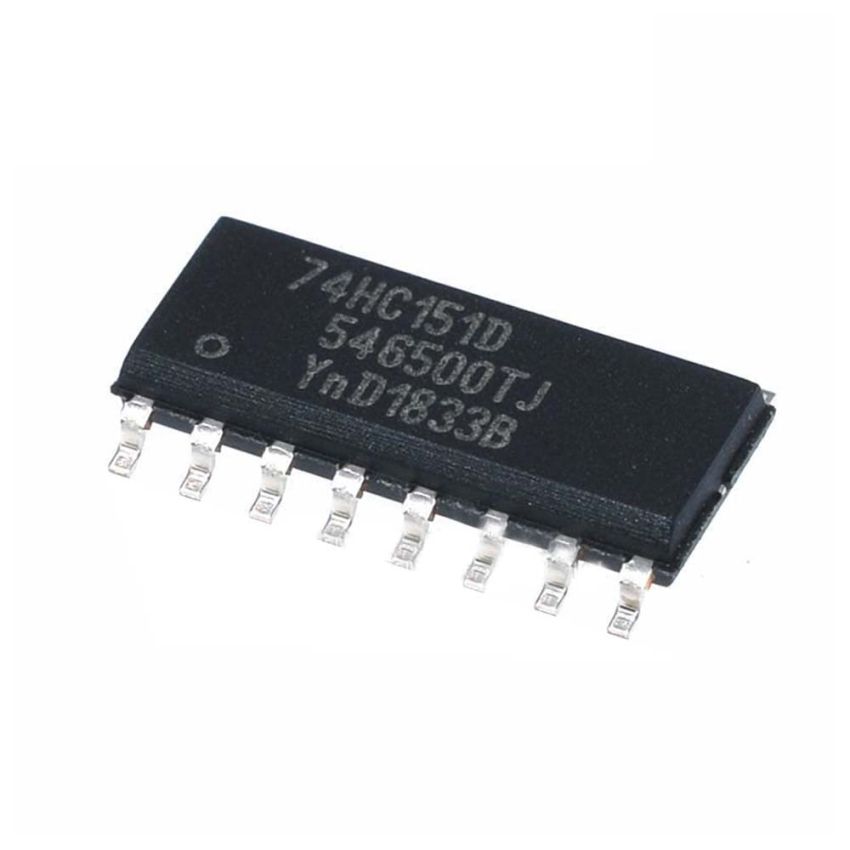

74HC151D,8-Input Multiplexer,SOIC-16

The 74HC151D is a high-speed 8-input multiplexer designed for data selection and logic signal processing applications. It enables multiplexing from multiple data sources to a single output, simplifying circuit design and reducing pin count in digital systems.

With dual outputs (Y and Y̅), this multiplexer provides both normal and complementary logic levels, making it ideal for signal conditioning and logic applications. The active-low enable (E) input ensures easy integration into bus-oriented systems.

Operating within a 2V to 6V supply range, the 74HC151D supports both low-power and high-speed applications. Its fast propagation delay (19ns typical at 5V) makes it suitable for high-speed digital computing, data acquisition, and signal processing applications.

Encased in a SOIC-16 package, this multiplexer is optimized for surface-mount designs, ensuring easy PCB integration for industrial, automotive, and consumer electronic applications.

• 8-Input Multiplexer: Selects one of eight binary data inputs and routes it to the output.
• Dual Outputs: Provides both true (Y) and complementary (Y̅) outputs for versatile logic implementations.
• Wide Voltage Range: Operates from 2V to 6V, ensuring compatibility with both low-power and high-speed systems.
• Fast Switching Speed: Propagation delay of 19ns (typical at 5V) for high-performance logic operations.
• Enable Input for Control: Includes an active-low enable (E) input, allowing easy integration into logic circuits.
• Compact SOIC-16 Package: Ensures efficient space utilization in circuit designs.
