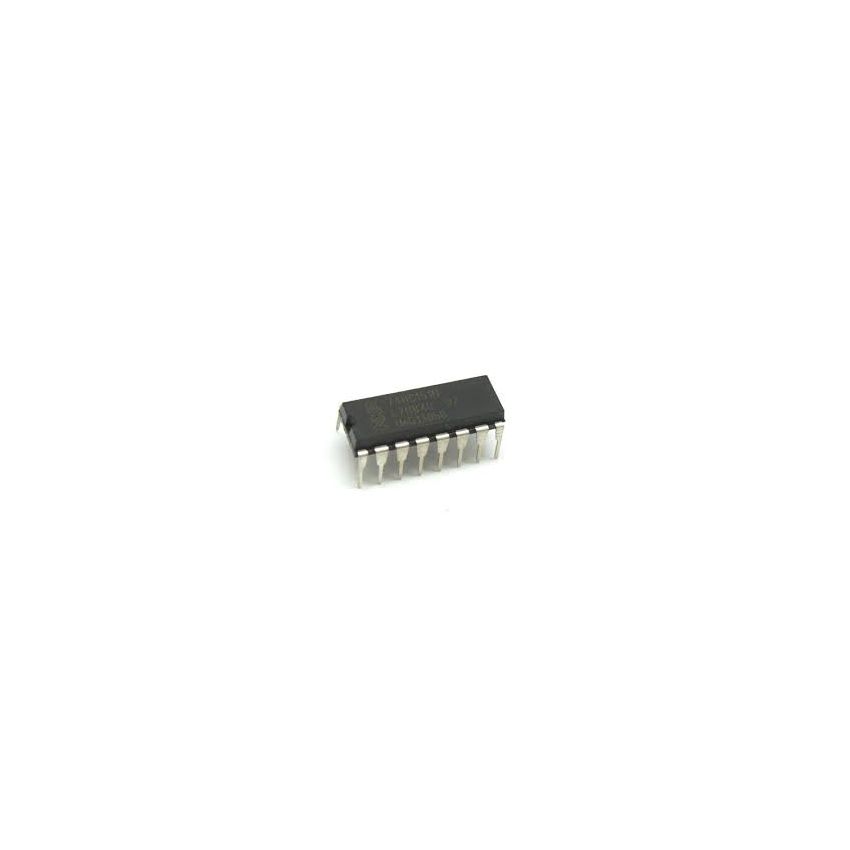

74HC151N, 8-Input Multiplexer, DIP-16

The 74HC151N is a high-speed CMOS 8-input multiplexer that selects one of eight binary inputs (I0 to I7) based on three select inputs (S0 to S2) and routes the selected input to the output. It provides both true (Y) and inverted (W) outputs, enhancing flexibility in digital circuit design. The device operates over a wide supply voltage range from 2V to 6V and is known for its low power consumption, making it suitable for various applications requiring efficient data selection and routing.

• 8-Input Multiplexer: Selects one of eight data inputs for a single output, facilitating efficient data routing.
• Complementary Outputs: Provides both true (Y) and inverted (W) outputs for versatile signal interfacing.
• High-Speed Operation: Designed for rapid data processing with typical propagation delays of 13 ns at 5V.
• Wide Supply Voltage Range: Operates from 2V to 6V, offering flexibility across various applications.
• Low Power Consumption: Features a maximum quiescent current (ICC) of 80 µA, ensuring energy-efficient performance.
• Standard TTL Compatibility: Compatible with Transistor-Transistor Logic levels, simplifying integration into digital systems.
