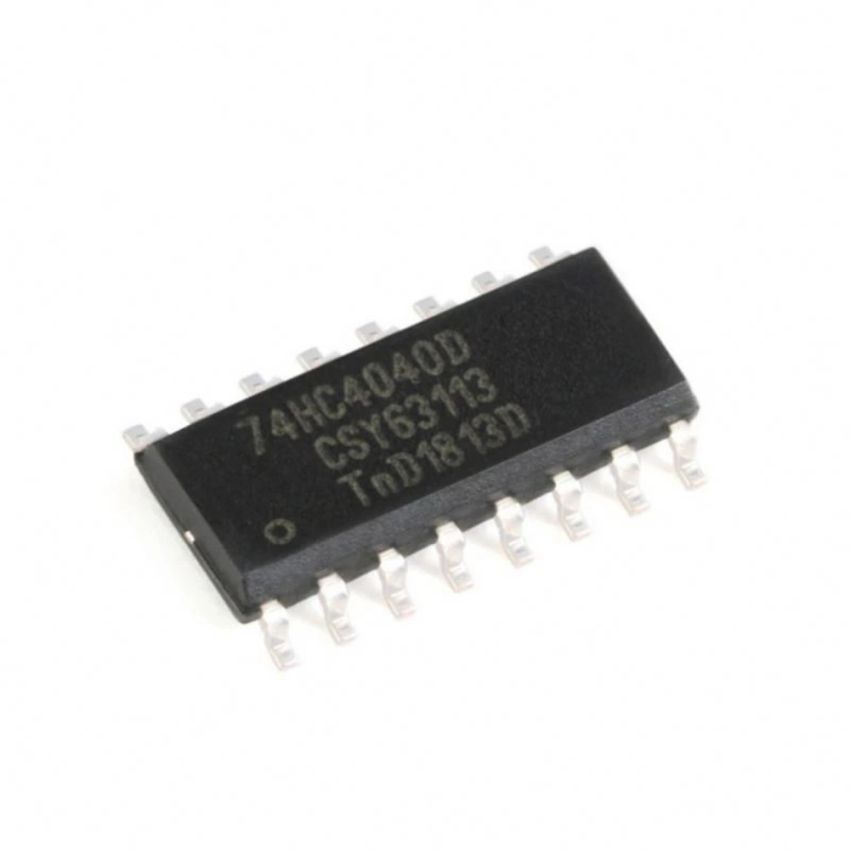

74HC4040D,12-Stage Binary Ripple Counter,SOIC-16

The 74HC4040D is a high-speed CMOS 12-stage binary ripple counter designed for various counting and frequency division applications. Encased in a compact SOIC-16 package, this IC integrates 12 flip-flops cascaded for binary counting, ensuring accurate operation at clock speeds up to 80 MHz at 6V.

Operating across a wide voltage range of 2V to 6V, the 74HC4040D offers compatibility with both CMOS and TTL logic levels. Its low power consumption and high-speed performance make it ideal for applications such as digital clocks, frequency dividers, and timing systems in industrial and consumer electronics.

• High-Speed Ripple Counter: Efficiently processes binary signals across 12 stages.
• Wide Operating Voltage Range: Compatible with CMOS and TTL levels, operating between 2V and 6V.
• Compact SOIC-16 Package: Surface-mount design suitable for modern PCB layouts.
• Low Power Consumption: Optimized for energy-efficient operation in digital systems.
• Maximum Clock Frequency: Up to 80 MHz at 6V, suitable for high-speed applications.
• Applications in Digital Logic: Perfect for frequency division, digital counters, and clock applications.
