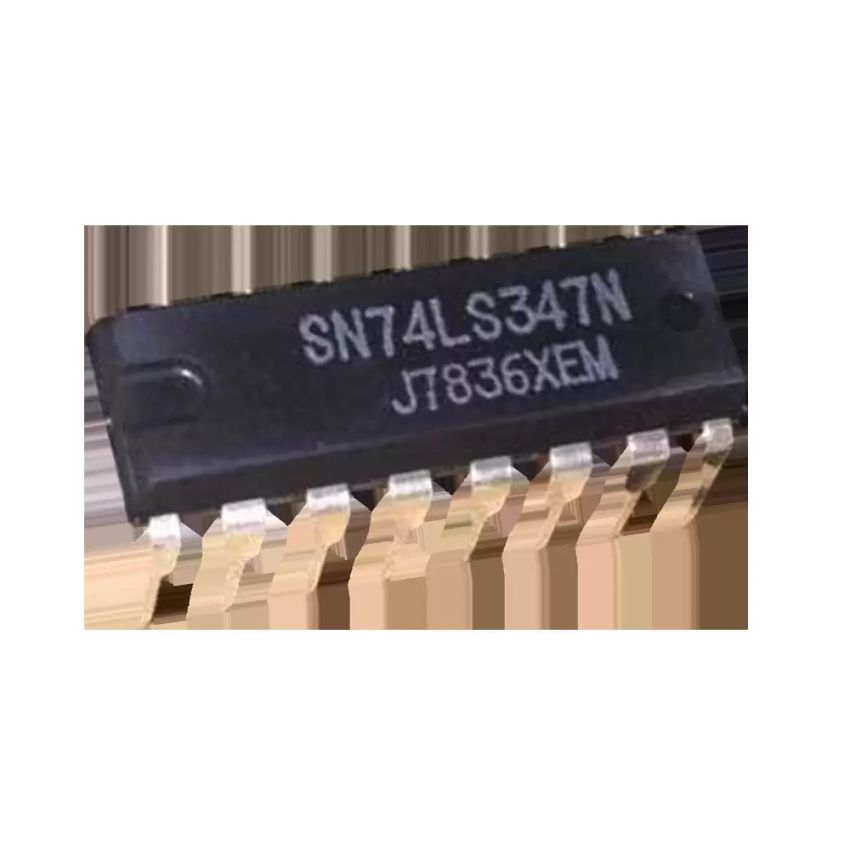

SN74LS347N,BCD-to-7 Segment Decoder,Driver, DIP-16

The SN74LS347N is a BCD-to-7 segment decoder/driver IC, specifically designed for driving LED-based 7-segment displays. It accepts binary-coded decimal (BCD) inputs and decodes them into the appropriate 7-segment patterns, making it ideal for digital counters, electronic meters, and numerical displays. Operating within a voltage range of 4.75V to 5.25V, the SN74LS347N is fully TTL compatible, ensuring smooth operation in standard digital logic circuits. The high output drive capability enables direct connection to common-cathode 7-segment displays, reducing the need for additional driver components. With its low-power Schottky (LS) design, the SN74LS347N minimizes power consumption while maintaining fast switching speeds. The DIP-16 package makes it easy to integrate into prototyping boards and PCB designs, ensuring reliable operation in embedded systems and display applications.

• BCD-to-7 Segment Decoder/Driver – Converts binary-coded decimal (BCD) inputs to 7-segment display outputs.
• TTL Compatible – Designed for TTL logic systems, ensuring stable integration with other logic circuits​
• Wide Voltage Range – Operates between 4.75V and 5.25V, suitable for standard digital logic applications​
• High Output Drive Capability – Supports direct driving of 7-segment LED displays.
• Low Power Consumption – Implemented with low-power Schottky (LS) technology for reduced energy consumption.
• DIP-16 Package for Easy Integration – Through-hole design enables reliable PCB mounting and prototyping.
