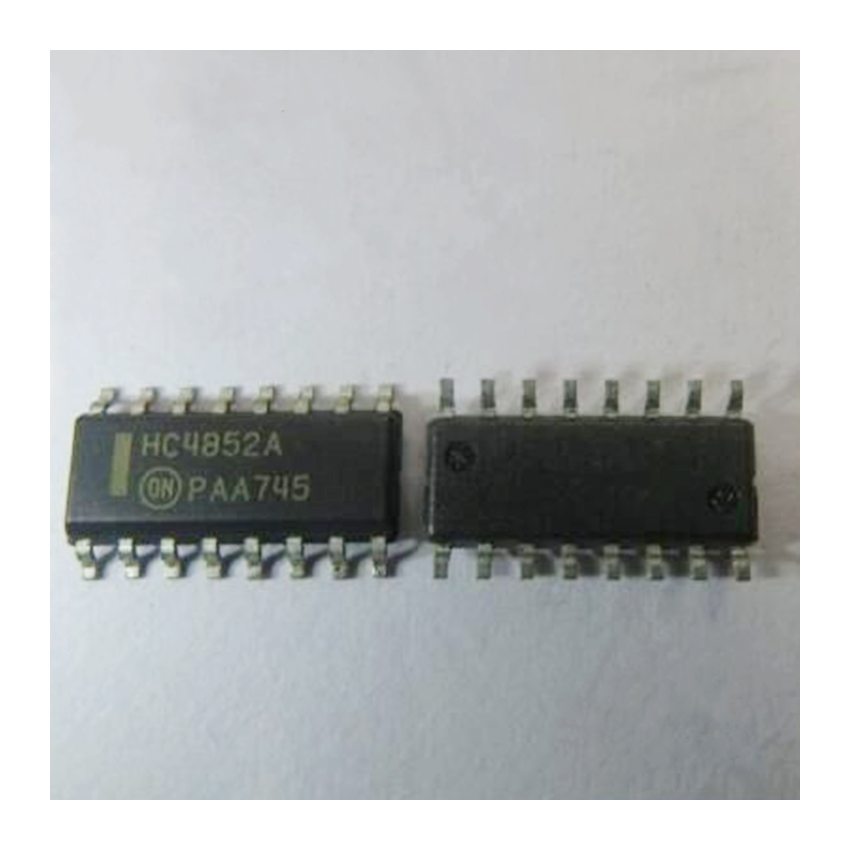

HC4852AG, Dual 4-Channel Analog Multiplexer/Demultiplexer with Injection Current Effect Control, SOIC-16

The HC4852AG is a dual 4-channel analog multiplexer/demultiplexer designed for high-speed CMOS applications. Each multiplexer has four independent inputs/outputs (Y0 to Y3) and a common input/output (Z). The device includes two digital select inputs (S0 and S1) and an enable input (E), allowing for precise channel selection and control. The injection current effect control feature permits signals at disabled analog input channels to exceed the supply voltage without affecting the signal of the enabled analog channel, eliminating the need for external protection networks. With a wide supply voltage range and low ON-state resistance, the HC4852AG is ideal for applications requiring efficient analog signal routing with minimal distortion.

• Dual 4-Channel Configuration: Integrates two independent 4-channel analog multiplexers/demultiplexers, facilitating efficient signal routing.
• Injection Current Effect Control: Allows signals at disabled analog input channels to exceed the supply voltage without affecting the enabled channel, eliminating the need for external diode/resistor networks.
• Wide Supply Voltage Range: Operates from 2V to 6V, providing flexibility for various applications.
• Low Crosstalk Between Switches: Ensures minimal interference between channels, maintaining signal integrity.
• Low ON-State Resistance: Exhibits typical ON-resistance of 76Ohm at VCC = 4.5V, ensuring minimal signal loss.
• Compact SOIC-16 Package: Encased in a 16-pin Small Outline Integrated Circuit package, suitable for surface-mount applications.
