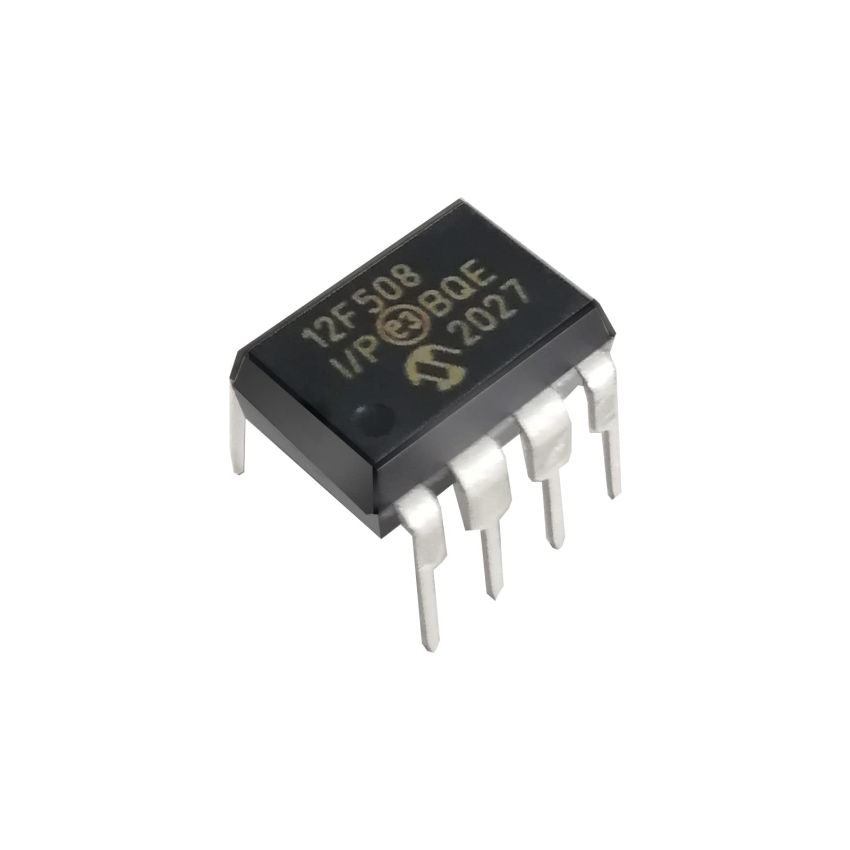

PIC12F508-I/P, 8-Bit Microcontroller, PDIP-8

The PIC12F508-I/P is a low-cost, high-performance, 8-bit microcontroller from Microchip Technology. It features a fully static RISC architecture, allowing most instructions to execute in a single cycle, thereby optimizing processing efficiency. With 768 bytes of Flash program memory and 25 bytes of SRAM, it provides sufficient resources for a variety of embedded applications.

The microcontroller includes an internal oscillator, eliminating the need for external clock components and simplifying the overall design. Built-in features such as Power-On Reset (POR) and a Watchdog Timer (WDT) enhance system reliability by providing necessary reset and monitoring functions.

Operating within a voltage range of 2.0V to 5.5V, the PIC12F508-I/P is versatile and suitable for various power supply configurations. Packaged in an 8-pin PDIP form factor, it is ideal for space-constrained applications and offers ease of integration into through-hole designs.

This microcontroller is well-suited for applications such as consumer electronics, home appliances, and other embedded systems that require a compact and efficient solution.

• High-Performance RISC CPU: Executes most instructions in a single cycle, enhancing processing efficiency.
• 768 Bytes of Flash Program Memory: Provides ample space for code storage, supporting up to 1,000 erase/write cycles.
• 25 Bytes of SRAM: Offers internal static RAM for data handling and temporary storage.
• Internal Oscillator: Eliminates the need for external clock components, simplifying design.
• Power-On Reset (POR) and Watchdog Timer (WDT): Enhances system reliability with built-in reset and monitoring features.
• Wide Operating Voltage Range: Operates from 2.0V to 5.5V, suitable for various power supply configurations.
