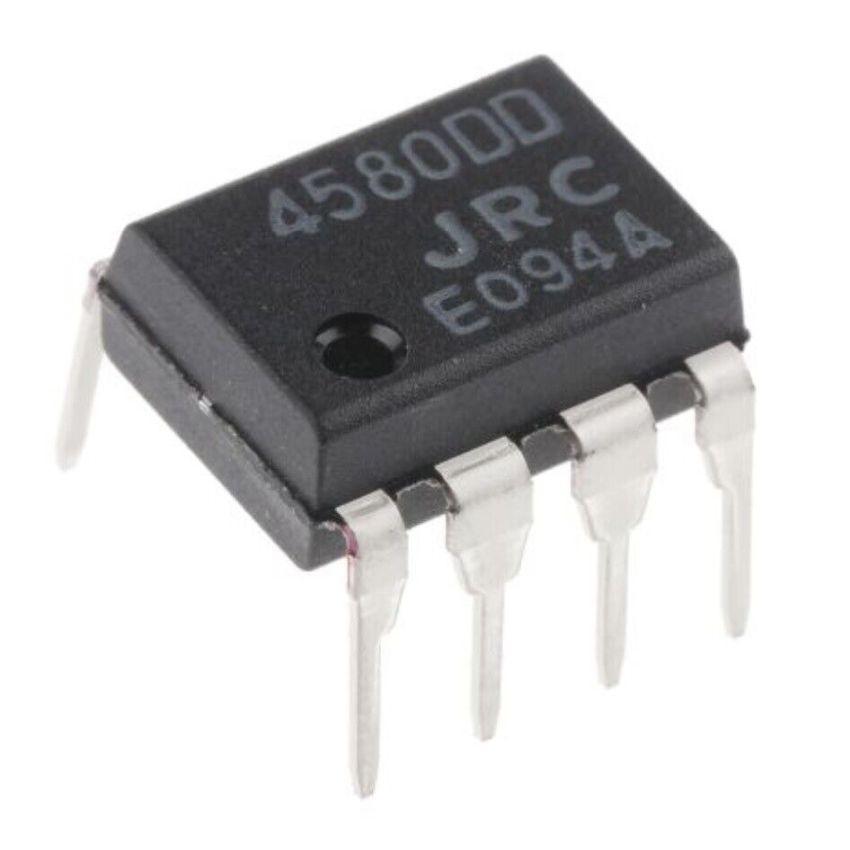

NJM4580D, Dual Operational Amplifier - 18V, 15MHz Bandwidth

The NJM4580D dual operational amplifier, designed and manufactured by JRC (New Japan Radio Co., Ltd.), is a high-performance amplifier suitable for high-fidelity audio applications. This device is engineered to enhance tone control with a low input noise voltage of 0.8 uV (rms) and a high gain bandwidth product of 15 MHz. Its low distortion ratio (0.0005% typ.) and high slew rate of 5 V/us make it ideal for precise audio signal amplification, making it a preferred choice for professional audio equipment, pre-amplifiers, active filters, and headphone amplifiers.

The NJM4580D’s robust design, which incorporates bipolar technology, is optimized for a wide operating voltage range of 2V to 18V, allowing it to operate efficiently even in low-voltage environments. The device is packaged in an industry-standard DIP-8, making it easy to integrate into various circuit designs. It is highly suitable for both consumer electronics and industrial measurement tools that demand audio accuracy and low distortion. Additionally, this op-amp’s wide common-mode input range and high output current capability support its adaptability in multiple configurations.

Key Features :

• Operating Voltage: 2V to 18V for wide application compatibility.
• Low Input Noise Voltage: 0.8 uV (rms), ensuring high-fidelity audio reproduction.
• Wide Gain Bandwidth: 15MHz typical, suitable for high-speed, high-accuracy applications.
• Low Distortion: 0.0005% typical, perfect for audio applications demanding minimal distortion.
• High Slew Rate: 5V/us, providing quick response to input changes.
• Compact DIP-8 Package: Allows for easy mounting and integration into circuits.
