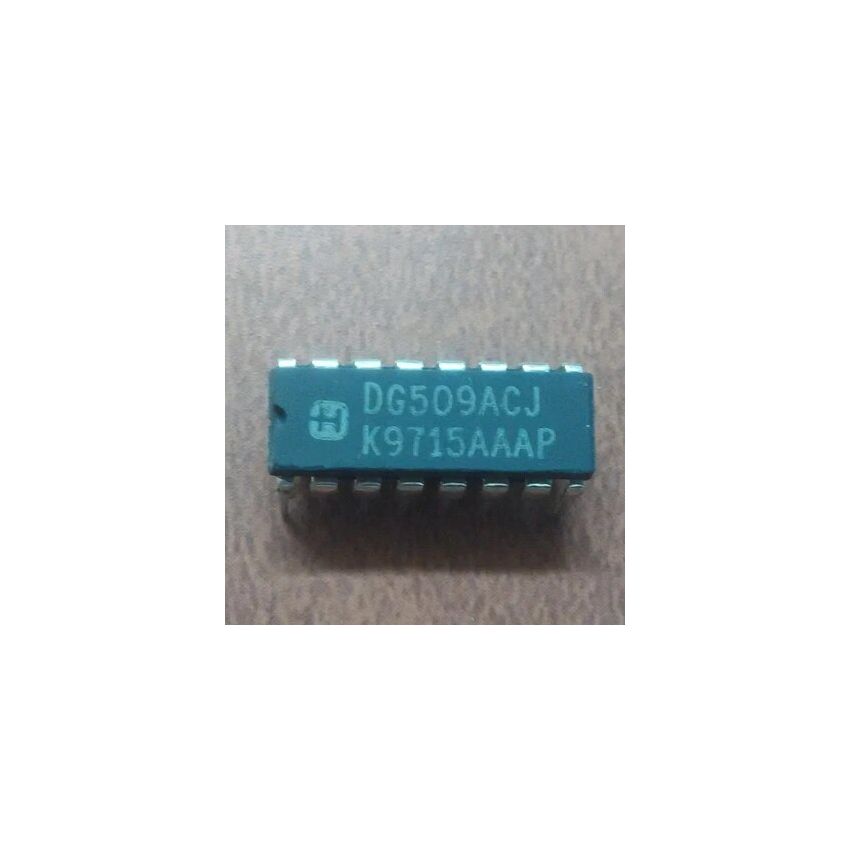

DG509ACJ-DIP-16, Monolithic CMOS Analog Multiplexer - 16-Channel, 44V Supply

The DG509ACJ-DIP is a monolithic CMOS analog multiplexer featuring 16 channels with a 44V maximum power supply rating. Designed for low power consumption and high latch-up immunity, this analog multiplexer offers break-before-make switching to avoid signal overlap.

With TTL and CMOS-compatible address and enable inputs, this multiplexer is versatile and reliable for various data acquisition systems, communication systems, and multiplexing applications. The device is housed in a DIP package, making it suitable for easy integration on standard circuit boards.

Key Features :

• 16-Channel CMOS Analog Multiplexer with break-before-make switching for signal integrity.
• High Power Supply Rating of up to 44V for robust and reliable operation in demanding environments.
• Low Power Consumption optimized for battery-powered and portable applications.
• TTL and CMOS-compatible Inputs for flexible control and configuration.
• High Latch-Up Immunity to prevent accidental disruptions during operation.
• Wide Operating Temperature Range: -55C to 125C for high-temperature industrial applications.
