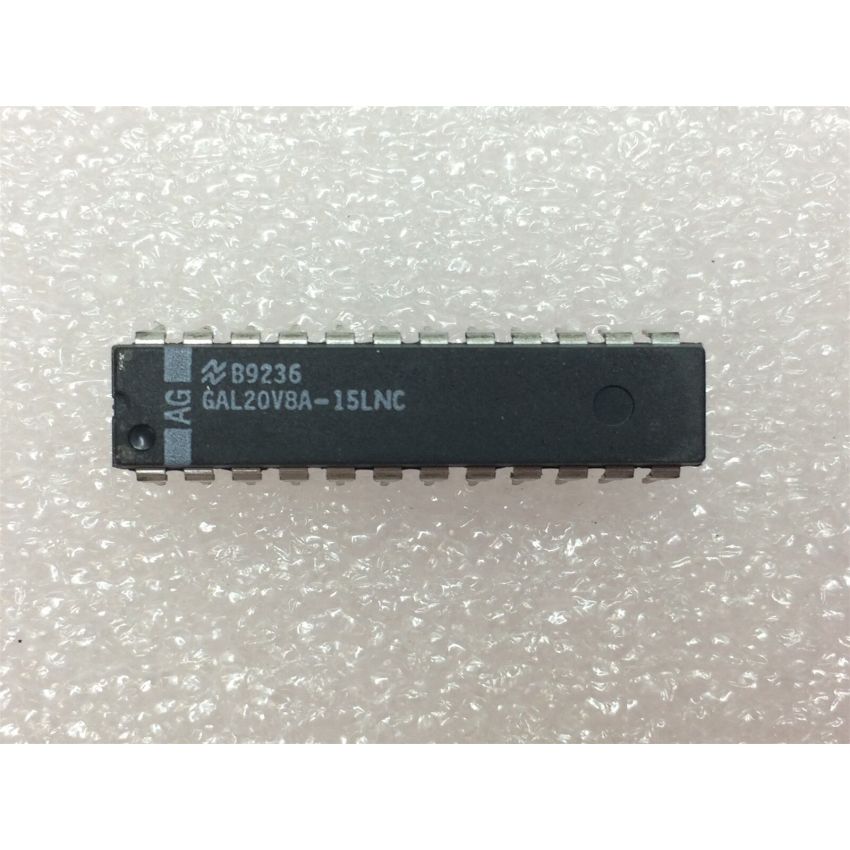

GAL20V8A-15LNC, Programmable Logic Device PLD, DIP-24

The GAL20V8A-15LNC is a high-performance Generic Array Logic (GAL) device designed for flexible and reprogrammable logic circuit implementation. It integrates a programmable AND/OR array that allows designers to configure it for custom combinational and sequential logic functions.

Packaged in a 24-pin DIP (Dual In-line Package), the GAL20V8A-15LNC is ideal for through-hole PCB designs, ensuring easy integration into both prototype and production environments. With high-speed operation and low power consumption, this PLD is widely used in digital control systems, data processing, and industrial automation.

The GAL20V8A can be reprogrammed multiple times, making it a cost-effective alternative to fixed logic gates and dedicated logic ICs. It is fully compatible with standard PAL devices, allowing for seamless replacement in existing designs.

• High-Speed Programmable Logic: Provides fast and flexible digital logic implementation for custom circuits.
• 24-Pin DIP Package: Through-hole mounting for easy prototyping and PCB integration.
• Reprogrammable Architecture: Electrically erasable CMOS technology allows multiple programming cycles.
• Low Power Consumption: Optimized for efficient operation in digital logic systems.
• Flexible Logic Configurations: Supports combinational and sequential logic functions.
• Wide Compatibility: Works as a replacement for standard PAL devices in logic design applications.
