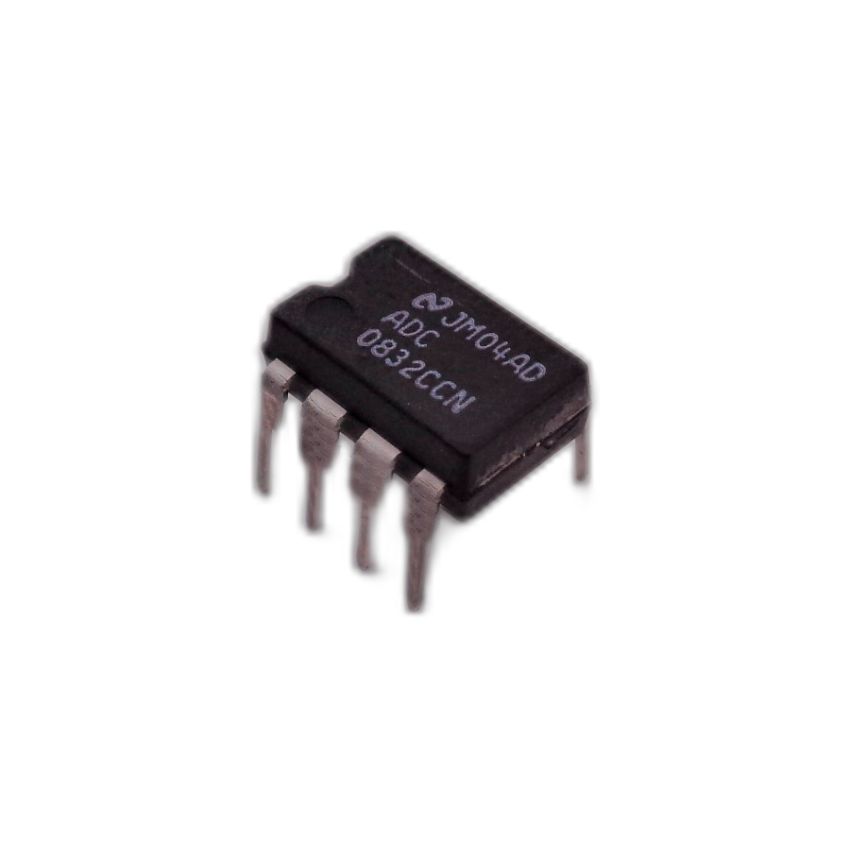

ADC0832CCN, 8-Bit Serial I/O A/D Converter with 2-Channel Multiplexer, DIP-8

The ADC0832CCN is an 8-bit successive approximation analog-to-digital converter (ADC) featuring a 2-channel multiplexer. It allows for the selection between two single-ended or one differential input, providing flexibility in various applications. The device communicates via a serial I/O interface compatible with MICROWIRE and SPI protocols, enabling straightforward integration with microcontrollers. Operating from a single 5V supply and requiring minimal power, the ADC0832CCN is ideal for applications such as data acquisition systems, instrumentation, and battery-powered devices.

• 8-Bit Resolution: Provides accurate analog-to-digital conversion with 8-bit resolution.
• 2-Channel Multiplexer: Offers two analog input channels, configurable for single-ended or differential inputs.
• Serial I/O Interface: Compatible with MICROWIRE and SPI interfaces, facilitating easy communication with microcontrollers.
• Single-Supply Operation: Operates from a single 5V DC supply, simplifying power requirements.
• Low Power Consumption: Consumes approximately 15 mW, making it suitable for energy-efficient applications.
• No External Adjustments Needed: Eliminates the need for zero or full-scale adjustments, streamlining implementation.
