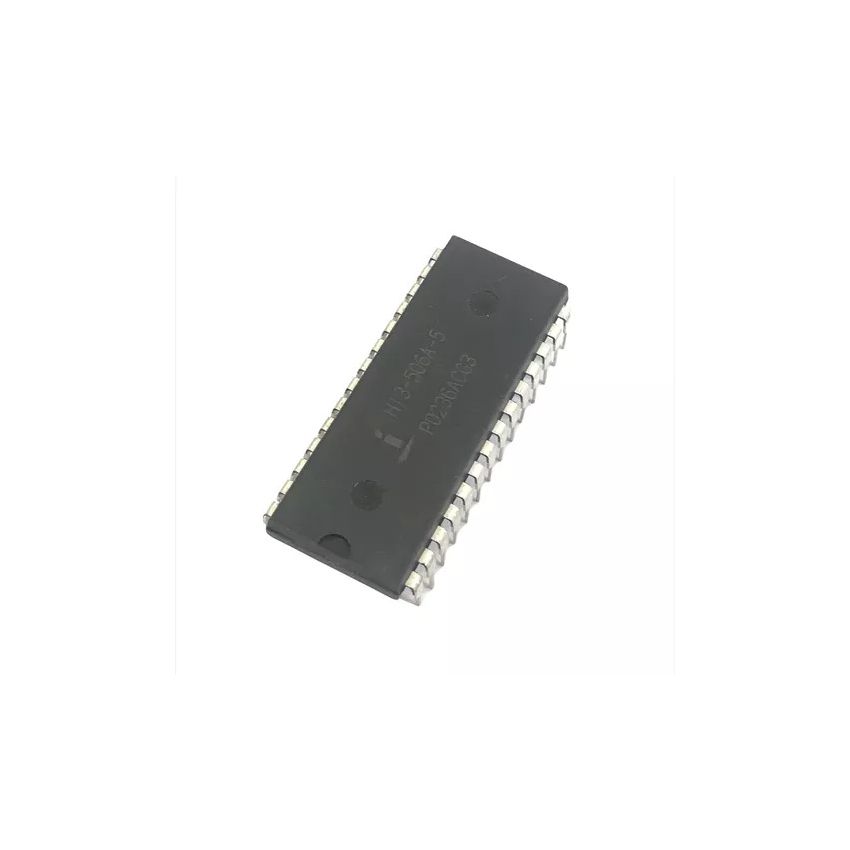

HI3-506A-5, Analog Multiplexer IC- 16-Channel, CMOS, Active Overvoltage Protection

The HI3-506A-5 is a 16-channel precision analog multiplexer with active overvoltage protection, designed for high-performance data acquisition and control systems. This CMOS multiplexer supports high analog input levels up to +/-15V and offers an analog signal range of up to 70Vp-p, making it ideal for systems where signal integrity and protection are critical.

With low power dissipation, break-before-make switching, and maximum power supply capability of 44V, the HI3-506A-5 is well-suited for use in industrial controls, telemetry, and other demanding applications.

• 16-Channel Multiplexer: Supports up to 16 channels for versatile analog signal switching applications.
• Active Overvoltage Protection: Ensures signal fidelity and circuit protection from high input voltages up to 70Vp-p.
• Analog Signal Range: Supports wide input voltage ranges from +/-15V, providing flexibility in high-precision data acquisition.
• Low On Resistance: Features low on-resistance (1.5-2.0 kohm typical), minimizing signal loss.
• Break-Before-Make Switching: Prevents signal shorting and maintains integrity during channel transitions.
• Low Power Dissipation: Consumes minimal power (7.5 mW typical), making it suitable for low-power and portable applications.
