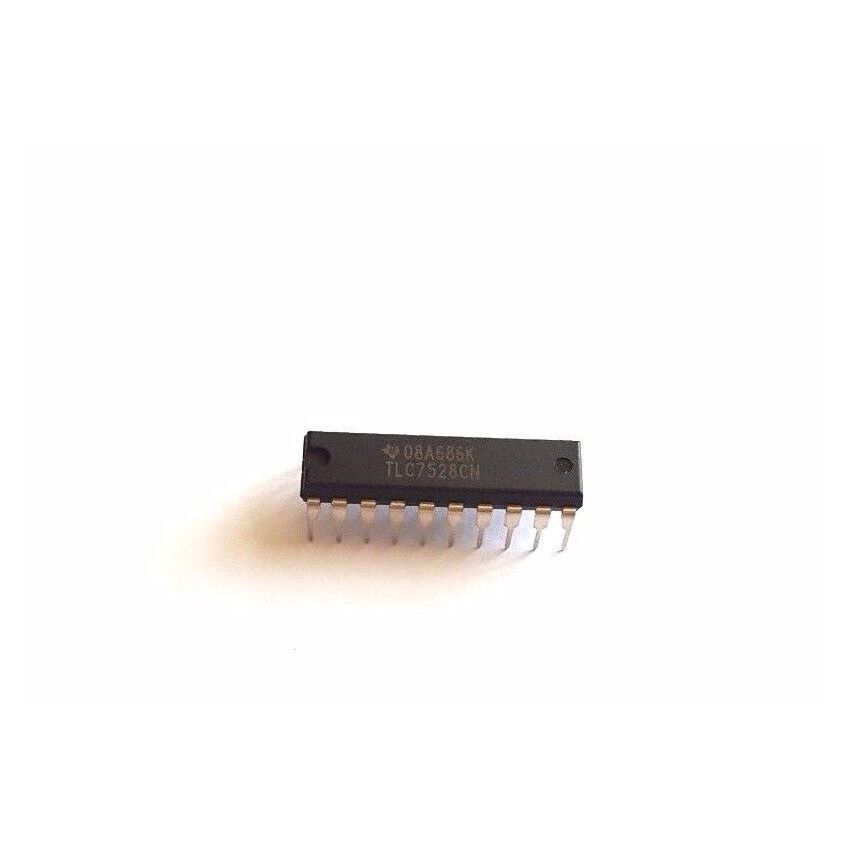

TLC7528CN,Dual 8-Bit Multiplying Digital-to-Analog Converter DAC,PDIP-20

The TLC7528CN is a high-performance Dual 8-Bit Multiplying Digital-to-Analog Converter (DAC) that ensures exceptional DAC-to-DAC matching and low power consumption. Designed for microprocessor-controlled applications, this DAC is equipped with on-chip data latches for smooth and efficient operations. Its voltage-mode functionality allows for easy integration into analog signal processing systems.

With a PDIP-20 package, the TLC7528CN is ideal for applications requiring precise digital-to-analog conversions, including audio signal processing, control systems, and gain-setting circuits. The device features TTL-compatible inputs, operates across a broad voltage range, and is capable of both 2-quadrant and 4-quadrant multiplication.

Whether you're designing a microprocessor-controlled system or managing signal control in gain-setting circuits, the TLC7528CN offers robust functionality and reliable performance.

• Dual DACs: Provides two identical, high-precision 8-bit multiplying DACs for versatile applications.
• Microprocessor Compatibility: Designed for easy interfacing with various microprocessors and digital systems.
• Low Power Consumption: Typical power dissipation is 20 mW at 5V operation.
• Voltage-Mode Operation: Supports voltage-mode for simplified circuit integration and output control.
• Wide Temperature Range: Operates effectively from 0C to 70C (TLC7528C).
• Compact Form Factor: Encased in a PDIP-20 package for standard PCB mounting.
