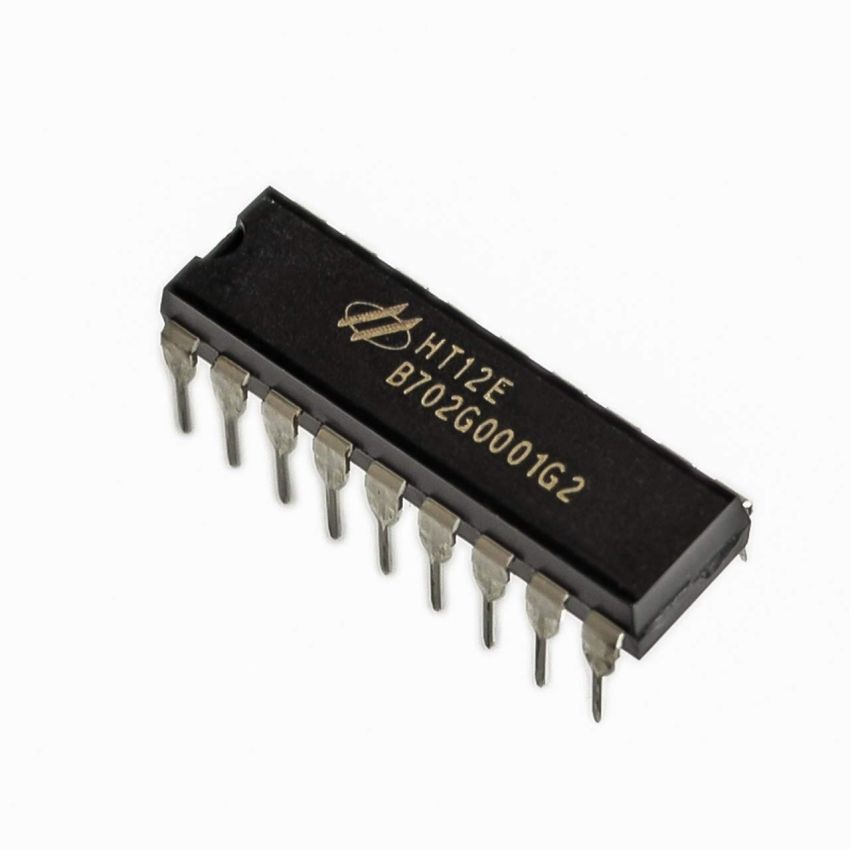

HT-12E, 12-Bit Encoder IC, DIP-18

The HT-12E is a CMOS 12-bit encoder IC, designed for remote control systems, security alarms, and wireless communication applications. It encodes 8 address bits and 4 data bits into a serial data output, which can be transmitted using an RF or infrared transmission medium. Operating between 2.4V and 12V, the HT-12E ensures reliable operation in low-power applications. Its built-in oscillator circuit simplifies frequency control, requiring only an external resistor for configuration. The device works seamlessly with the HT-12D decoder IC, making it a standard choice for wireless control applications. With its DIP-18 package, the HT-12E is ideal for use in remote control systems, alarm circuits, garage door controllers, and security applications.

• 12-Bit Encoder IC – Encodes 8 address bits and 4 data bits for wireless remote control applications.
• Wide Operating Voltage Range – Functions between 2.4V and 12V, ensuring compatibility with various circuit designs​
• Low Power Consumption – Operates with low standby current (0.1uA at 5V), making it ideal for battery-powered systems.
• Built-in Oscillator Circuit – Requires only an external resistor to set the frequency.
• Pairing Compatibility – Designed to work with Holtek’s HT-12D decoder IC for remote control applications.
• DIP-18 Package for Easy Integration – Through-hole package enables straightforward PCB mounting and prototyping.
