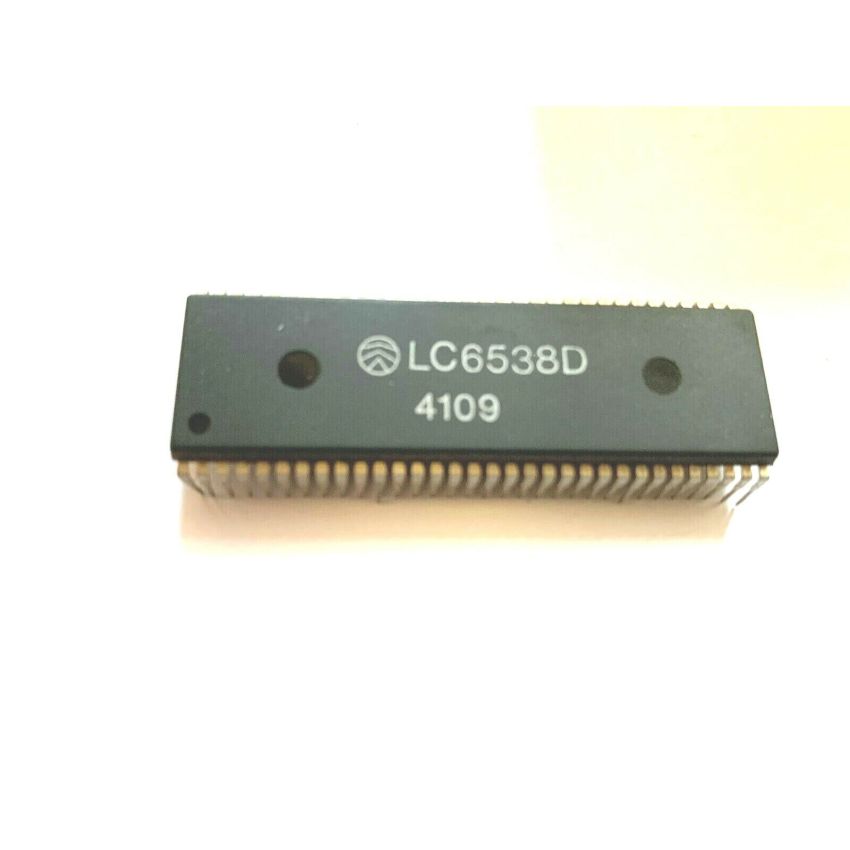

LC6538D, 4-Bit Microcontroller, DIP,

The LC6538D is a 4-bit single-chip microcontroller developed by Sanyo Semiconductor, designed for embedded control applications that require low power consumption, compact memory architecture, and reliable processing. This MCU integrates essential ROM and RAM memory, reducing external component requirements and making it ideal for cost-sensitive designs.

With built-in timer functions, multiple programmable I/O ports, and low-power operation, the LC6538D is well-suited for applications such as consumer electronics, home appliances, and basic automation systems. The microcontroller operates on standard CMOS voltage levels and is housed in a DIP package, enabling easy through-hole PCB assembly.

• 4-Bit CMOS Microcontroller: Optimized for cost-effective embedded applications.
• Integrated ROM and RAM: Provides on-chip memory for program storage and data processing.
• Multiple I/O Ports: Offers flexible interfacing options for external components and peripherals.
• Built-in Timer Functions: Supports time-based event control essential for automation and consumer electronics.
• Low Power Consumption: Designed with CMOS technology to ensure power efficiency.
• DIP Package: Standard Dual In-Line Package (DIP) for easy PCB integration.
