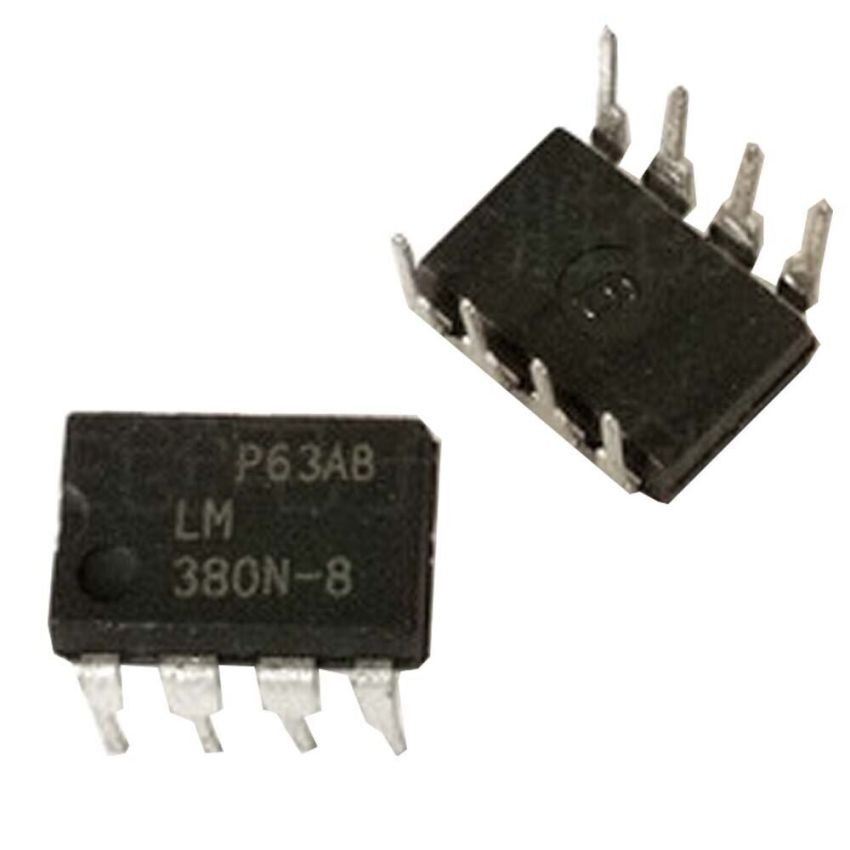

LM380N-8, Audio Power Amplifier, 2.5W Output, DIP-8 Package

The LM380N-8 is a high-quality audio power amplifier designed for consumer audio applications. It delivers a powerful 2.5W output with minimal distortion, making it suitable for compact sound systems, intercoms, and small servo drivers. The amplifier operates over a wide supply voltage range of 10V to 22V, ensuring design flexibility.

With an internally fixed gain of 34 dB, this amplifier requires minimal external components. It also features short-circuit and thermal protection, ensuring reliable performance in demanding environments. The LM380N-8 comes in a standard DIP-8 package, making it easy to integrate into various audio projects.

Key Features :

• High Output Power: Delivers up to 2.5W output with minimal distortion, ideal for audio applications.
• Wide Supply Voltage Range: Operates efficiently between 10V to 22V for versatile design.
• Low Quiescent Current: Draws as little as 7mA, making it ideal for battery-powered devices.
• Internal Fixed Gain: Factory-set gain of 34 dB simplifies design and reduces the need for external components.
• Short Circuit Protection: Built-in output protection ensures reliability and durability.
• Thermal Shutdown: Protects the device from overheating, increasing longevity.
