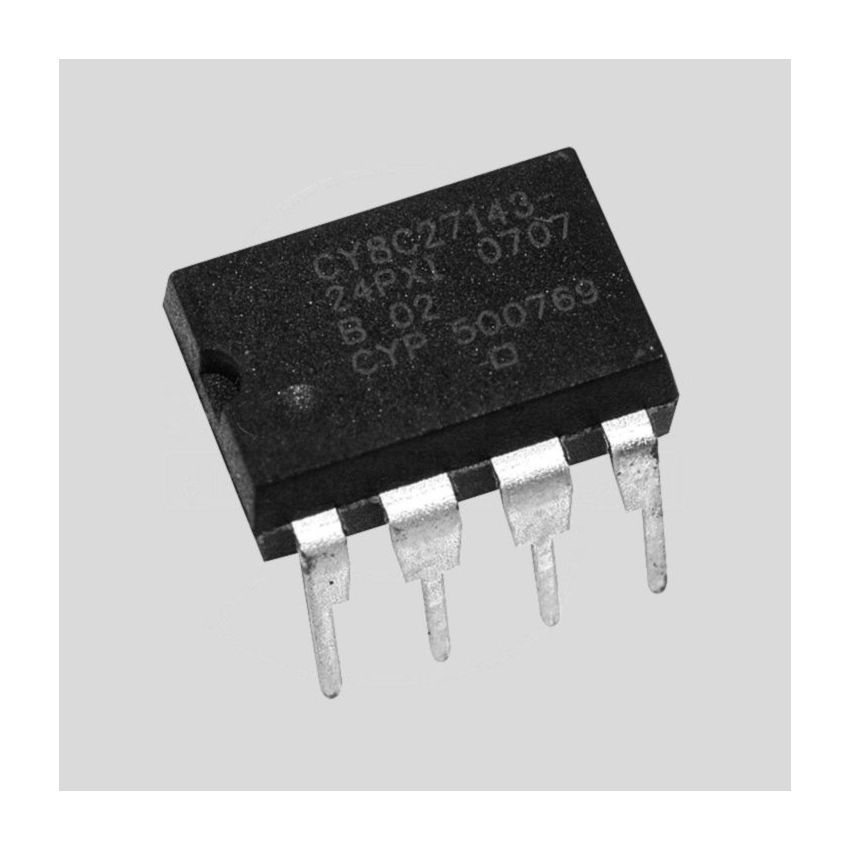

CY8C24123, 8-Bit PSoC® Microcontroller, 24 MHz

The CY8C24123 is a member of Cypress Semiconductor's PSoC® (Programmable System-on-Chip) family, combining a high-performance 8-bit M8C core with configurable analog and digital peripherals. This integration offers designers a flexible and cost-effective solution for a wide range of embedded applications.

Operating at frequencies up to 24 MHz, the CY8C24123 delivers robust processing power. Its unique architecture includes six analog and four digital configurable blocks, enabling the implementation of custom functions such as analog-to-digital converters (ADCs), digital-to-analog converters (DACs), timers, counters, pulse-width modulators (PWMs), and various communication interfaces.

The microcontroller features 4 KB of Flash memory for program storage and 256 bytes of SRAM for data storage, providing sufficient space for code and data management. The device's I/O system offers up to 24 general-purpose pins, each capable of multiple drive modes and programmable pull-up or pull-down resistors, enhancing design flexibility.

Designed with power efficiency in mind, the CY8C24123 includes various low-power modes, such as sleep and watchdog timers, to extend battery life in portable applications. The integrated I²C module supports communication speeds of 100 kHz and 400 kHz, accommodating both slave and master configurations.

The CY8C24123 is suitable for applications in consumer electronics, industrial control, and automotive systems, where adaptability and performance are essential.

• Powerful M8C Core Processor: Operates at speeds up to 24 MHz, delivering efficient performance for various applications.
• Configurable Analog and Digital Blocks: Integrates six analog and four digital blocks, allowing customization of peripherals such as ADCs, DACs, timers, and communication interfaces.
• Flexible On-Chip Memory: Equipped with 4 KB of Flash memory for program storage and 256 bytes of SRAM for data storage.
• Versatile I/O Capabilities: Provides up to 24 general-purpose I/O pins with configurable drive modes and programmable pull-up/pull-down resistors.
• Low Power Consumption: Features multiple power-saving modes, including sleep and watchdog timers, to optimize energy efficiency.
• Integrated I²C Module: Supports 100 kHz and 400 kHz communication speeds in slave, master, and multi-master modes.
