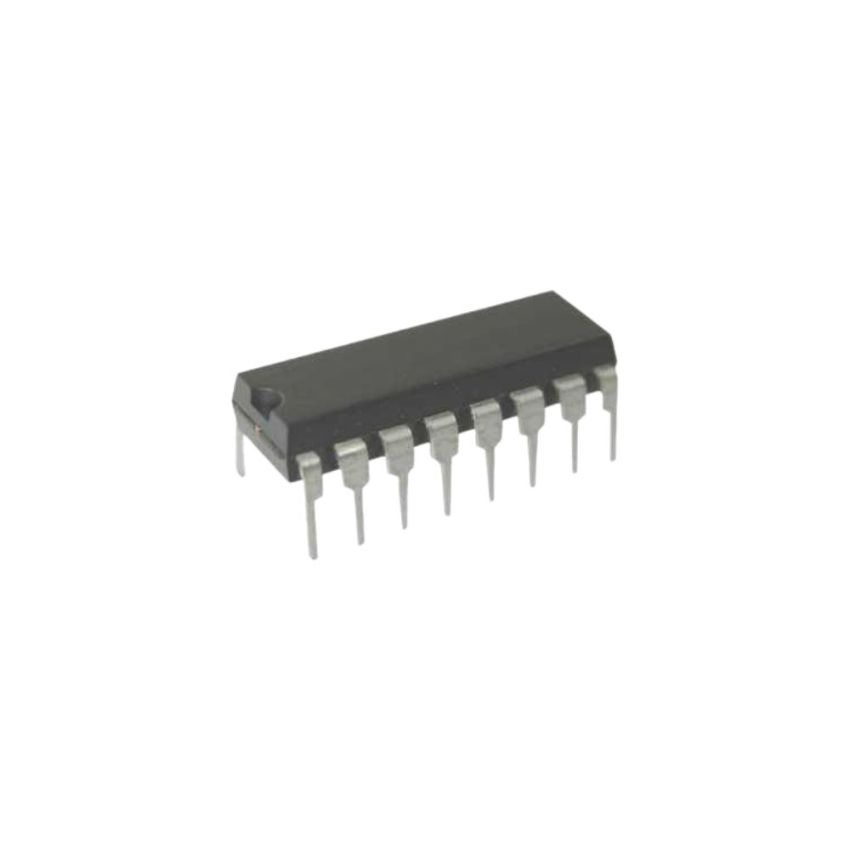

TD62002P, 7-Channel Darlington Transistor Array, DIP-16

The TD62002P is a 7-channel Darlington transistor array designed to drive high-current loads in relay, lamp, LED, motor, and solenoid applications. Featuring integrated flyback diodes, it ensures safe switching of inductive loads while minimizing voltage transients.

The TD62002P delivers high output drive capability with a maximum collector current of 500mA per channel, making it suitable for industrial automation, home appliances, and automotive control systems. Its DIP-16 package allows for through-hole mounting, ensuring easy implementation and secure connections in PCB designs.

With a maximum Collector-Emitter voltage (VCEO) of 50V, the TD62002P is designed for high-voltage switching applications. The built-in diode protection and low saturation voltage enhance its durability and efficiency, making it an essential component for high-power switching systems.

• 7-Channel Darlington Configuration: High-gain NPN Darlington transistors integrated for high-current switching applications.
• High Output Current Capability: Supports up to 500mA per channel, ideal for relays, solenoids, and LED driving applications.
• High Voltage Tolerance: Operates with a 50V Collector-Emitter voltage (VCEO), suitable for industrial control circuits.
• Built-in Clamp Diodes: Protects against inductive voltage spikes, ensuring safe operation with motors and relays.
• Compact DIP-16 Package: Through-hole mounting for easy integration into PCB designs.
• Wide Operating Temperature Range: Functions reliably within -40°C to +85°C, making it ideal for automotive and industrial environments.
