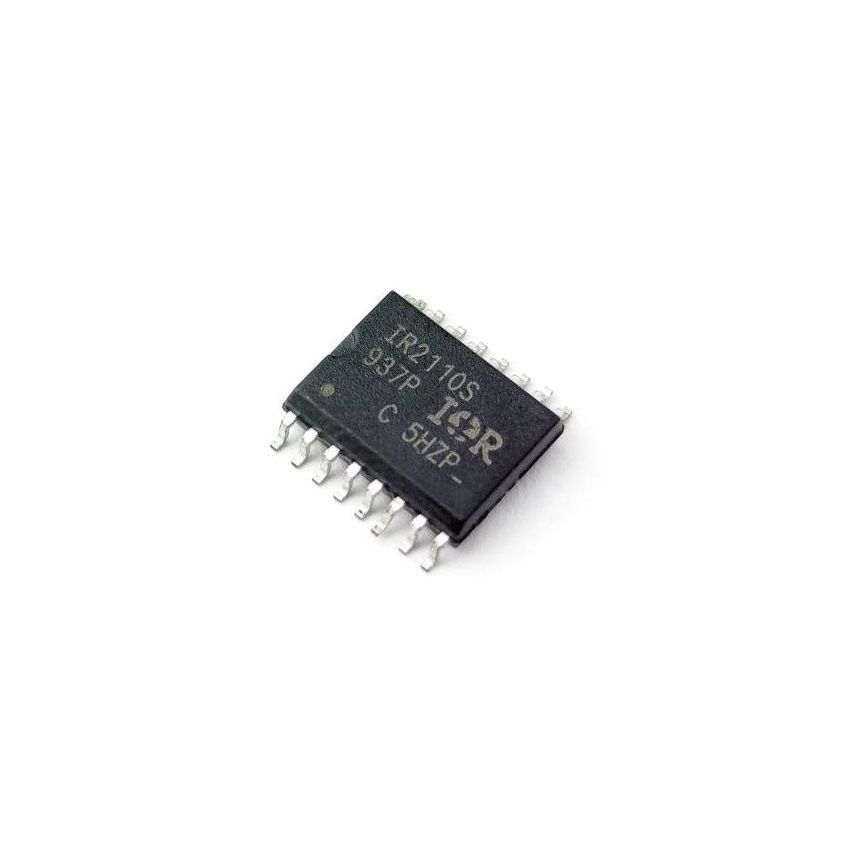

IR2110S,High and Low Side Gate Driver IC, SOIC-16, 2A,10V-20V

The IR2110S is a high-performance, high-voltage gate driver IC designed to independently drive high and low-side N-channel power MOSFETs or IGBTs. With a robust output capability of 2A peak current, this driver provides reliable and efficient control of power devices, making it ideal for various demanding applications including motor control, inverters, and switch-mode power supplies (SMPS).

Featuring a wide operating voltage range from 10V to 20V, the IR2110S accommodates different power circuit configurations, ensuring maximum flexibility. Its compact SOIC-16 package allows for easy integration into various circuit designs, even in space-constrained environments. The driver includes built-in protection mechanisms such as under-voltage lockout (UVLO) for both the high and low sides, which safeguards the circuit during abnormal conditions. Additionally, it supports both standard CMOS and LSTTL logic levels, down to 3.3V.

The IR2110S is known for its high switching speed, matched propagation delays, and rugged construction. These features make it an excellent choice for applications that require precise timing and reliable performance, such as solar inverters, motor drives, and high-frequency DC-DC converters.

• High and Low Side Gate Drive: Independently controls high and low side N-channel MOSFETs or IGBTs, making it suitable for various power applications like inverters and motor control.
• Wide Supply Voltage Range: Operates efficiently between 10V and 20V, providing flexibility for different circuit designs.
• Robust Output Capability: Capable of sourcing and sinking peak currents up to 2A, enabling fast switching with minimal delays.
• Protection Features: Includes under-voltage lockout for both high and low sides, ensuring reliable performance and safeguarding against faults.
• Compact Surface-Mount Design: Available in a compact SOIC-16 package, allowing for efficient board layout and integration into space-constrained designs.
• Versatile Applications: Ideal for use in motor drives, switch-mode power supplies (SMPS), solar inverters, and other high-speed switching circuits.
