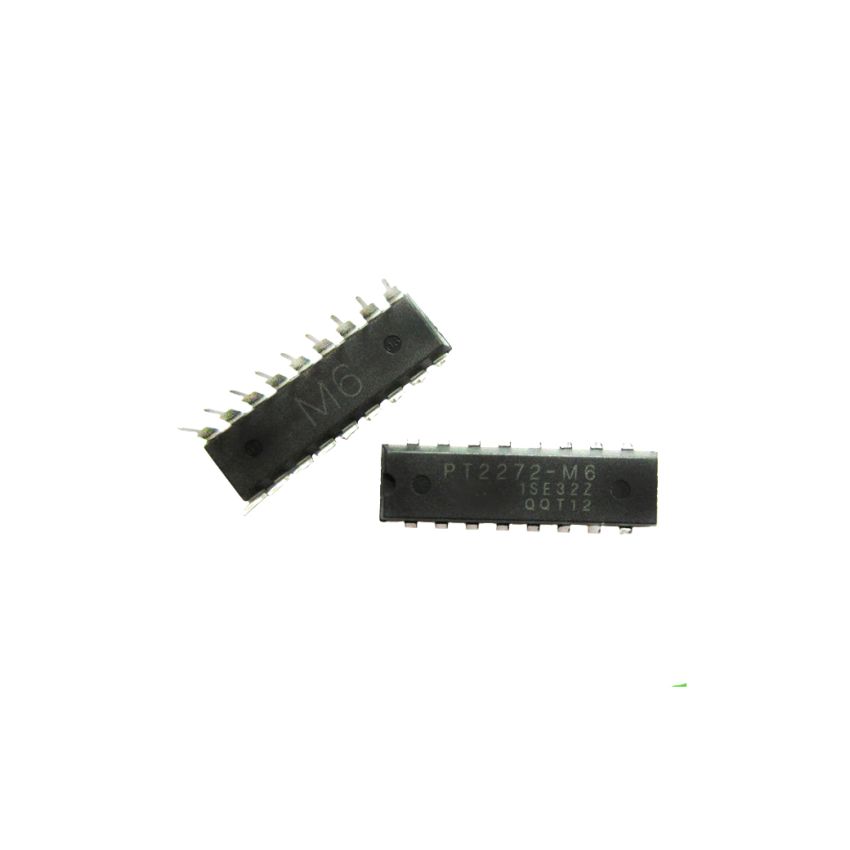

PT2272-M6,Remote Control Decoder IC, 6 Data Pins, Momentary Output,DIP-18

The PT2272-M6 is a CMOS-based remote control decoder IC designed for pairing with the PT2262 encoder. It decodes up to 12-bit tri-state address pins and 6 data pins into usable outputs. With its momentary output mode, the data outputs remain active only during valid signal transmission, ensuring reliable operation in remote control applications.

Encased in a DIP-18 package, the PT2272-M6 operates within a supply voltage range of 4V to 15V, making it suitable for car security systems, home automation, industrial controls, and remote-controlled toys. Its high noise immunity and robust design enhance performance in diverse environments.

• 6 Data Pins: Supports up to 6 output channels for versatile remote control applications.
• Momentary Output Type: Outputs are active only when signals are received.
• High Security: Provides up to 531,441 (12-bit) unique address codes for enhanced reliability.
• Wide Voltage Range: Operates from 4V to 15V, ensuring compatibility with various systems.
• Low Power Consumption: CMOS technology minimizes energy usage.
• Compact DIP-18 Package: Ideal for through-hole designs in prototyping and production.
