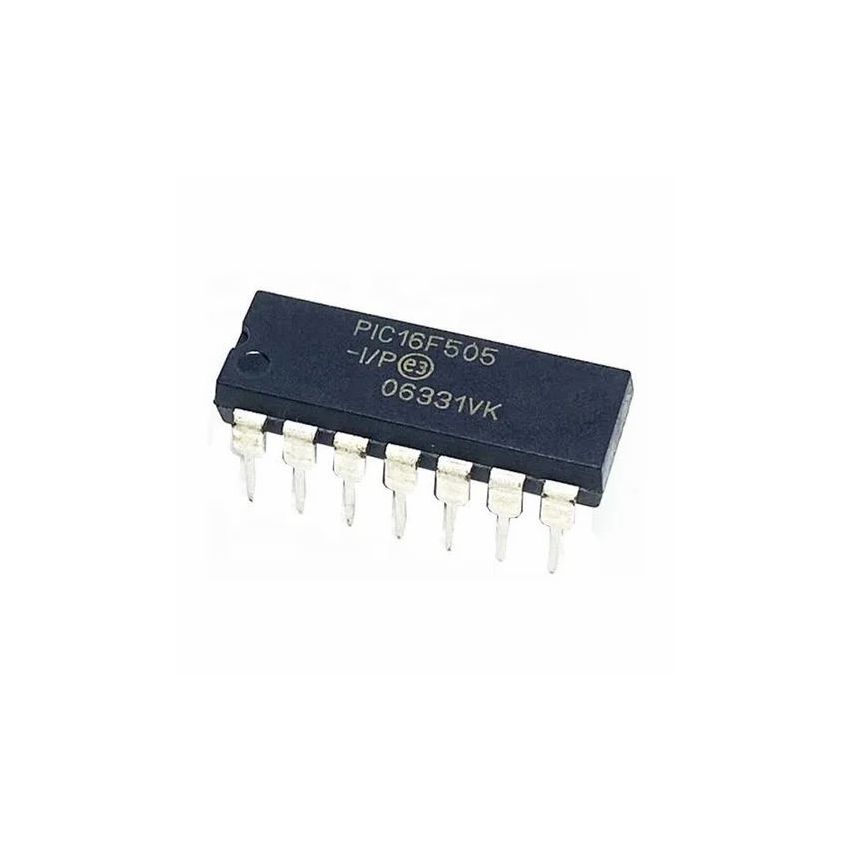

PIC16F505-I/P, 8-Bit Microcontroller, DIP-14

The PIC16F505-I/P is an 8-bit microcontroller from Microchip Technology, designed for a variety of embedded applications requiring efficient processing and low power consumption. Operating at a maximum clock frequency of 20MHz, it delivers reliable performance for various control tasks.

Equipped with 1.5KB of Flash program memory and 72 bytes of SRAM, the PIC16F505-I/P provides adequate storage for code and data. The internal 4MHz oscillator simplifies the design by eliminating the need for external clock components, while the 11 versatile I/O pins support multiple functions, including digital I/O and analog input.

Designed with energy efficiency in mind, the microcontroller offers multiple power-saving modes, making it suitable for battery-powered applications. Its 14-pin Dual In-Line Package (DIP-14) allows for easy integration into through-hole PCB designs, supporting both prototyping and mass production.

The PIC16F505-I/P is ideal for applications such as consumer electronics, industrial control systems, and home automation, where precise timing, power efficiency, and reliable data processing are essential.

• High-Performance RISC CPU: Executes most instructions in a single cycle, providing efficient processing.
• 1.5KB Flash Program Memory: Offers ample space for code storage with in-circuit reprogrammability.
• 72 Bytes of SRAM: Provides sufficient data storage for variables and stack operations.
• Internal 4MHz Oscillator: Eliminates the need for external clock components, simplifying design.
• 11 I/O Pins with Multiple Functions: Facilitates flexible interfacing with external peripherals and devices.
• Low Power Consumption: Features multiple power-saving modes to optimize energy efficiency.
