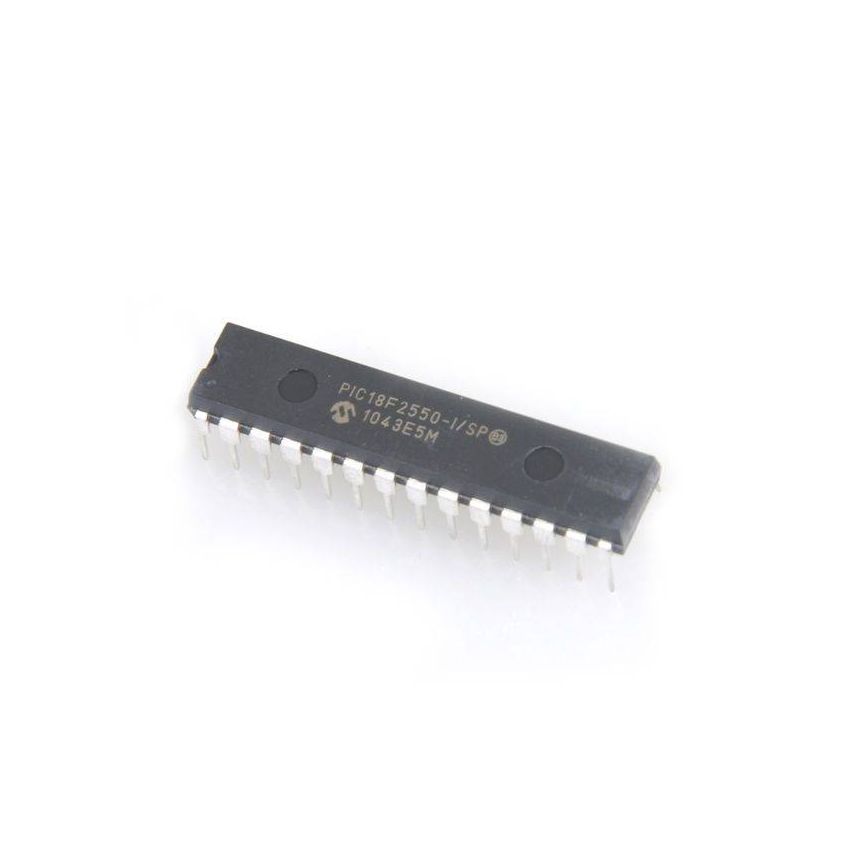

PIC18F2550-1.SP, 8-Bit USB Microcontroller, DIP-28

The PIC18F2550-1.SP is a high-performance, low-power 8-bit microcontroller from Microchip, featuring integrated USB 2.0 functionality for plug-and-play connectivity in embedded applications. With 32KB of Flash memory, 2KB of SRAM, and a 10-bit ADC, this microcontroller is ideal for applications requiring data acquisition, communication, and precision control.

Designed with advanced power management modes, including Idle and Sleep modes, this MCU is well-suited for battery-powered and energy-sensitive devices. The built-in USB module simplifies connection to PCs, industrial controllers, and embedded USB devices, supporting both low-speed (1.5Mbps) and full-speed (12Mbps) USB communication.

Additionally, the PIC18F2550 includes an Enhanced Capture/Compare/PWM (ECCP) module, making it perfect for motor control, signal generation, and industrial automation applications. It also features an Enhanced USART with LIN bus support, allowing reliable serial communication in automotive and IoT systems.

Encased in a DIP-28 package, this microcontroller is easy to integrate into new and existing designs, making it an excellent choice for USB-based embedded systems, industrial automation, and sensor interfacing applications.

• High-Speed USB 2.0 Support: Includes a USB V2.0-compliant Serial Interface Engine (SIE), supporting low-speed (1.5 Mbps) and full-speed (12 Mbps) USB communication.
• Enhanced Flash Memory: Features 32KB of program Flash memory, allowing robust application development and firmware updates.
• Power-Efficient Design: Includes multiple power-managed modes, such as Idle, Sleep, and Two-Speed Oscillator Startup, ensuring low-power operation.
• High-Speed Operation: Supports a clock frequency up to 48MHz with an internal PLL, making it ideal for real-time applications.
• Reliable Connectivity: Features an Enhanced USART with LIN support, ensuring robust serial communication in automotive and industrial systems.
• Rich Peripheral Set: 10-bit ADC with up to 13 channels for analog signal processing. Enhanced Capture/Compare/PWM (ECCP) module for precision control applications. Master Synchronous Serial Port (MSSP) for SPI/I²C communication.
