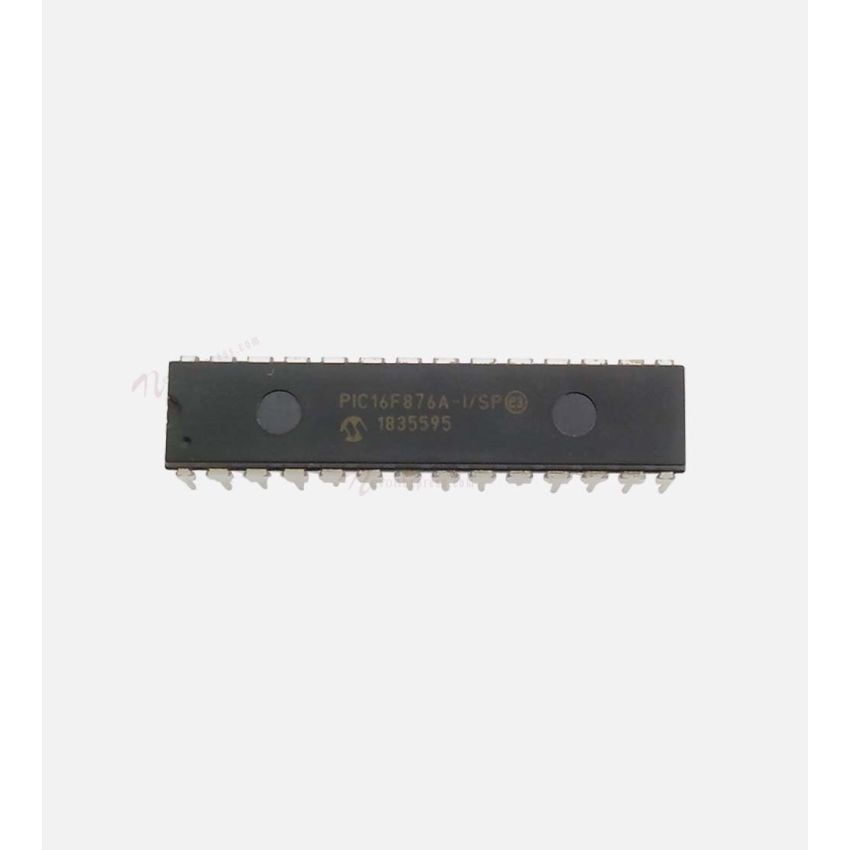

PIC16F876A-I/SP, 8-Bit Microcontroller, 28-Pin SPDIP

The PIC16F876A-I/SP is a powerful 8-bit microcontroller from Microchip Technology's PIC® 16F family, designed for general-purpose embedded control applications. Operating at speeds up to 20MHz, it features a high-performance RISC architecture, executing most instructions in a single cycle for fast and efficient processing.

With 14KB of Flash program memory, 368 bytes of SRAM, and 256 bytes of EEPROM, the PIC16F876A-I/SP provides sufficient storage for program execution and data retention. It supports multiple communication protocols, including I²C, SPI, and UART/USART, enabling seamless connectivity with external peripherals such as sensors, displays, and actuators.

The integrated 10-bit ADC allows for high-accuracy analog-to-digital conversions, making it ideal for sensor-based applications. The microcontroller also includes advanced system control features, such as Brown-out Reset (BOR), Power-On Reset (POR), and a Watchdog Timer (WDT), ensuring robust operation in industrial and consumer applications.

With its 28-pin SPDIP package, the PIC16F876A-I/SP is well-suited for through-hole PCB designs, making it easy to integrate into prototyping and production environments. It is commonly used in industrial automation, consumer electronics, motor control systems, and data acquisition applications.

• High-Performance RISC CPU: Executes most instructions in a single cycle, optimizing processing efficiency.
• 14KB Flash Program Memory: Provides ample code storage, with support for In-Circuit Serial Programming (ICSP).
• 368 Bytes of SRAM & 256 Bytes of EEPROM: Enables efficient data handling and non-volatile storage for configuration parameters.
• Multiple Communication Interfaces: Includes I²C, SPI, and UART/USART for flexible device connectivity.
• 10-Bit Analog-to-Digital Converter (ADC): Features 5 channels for precise analog signal conversion in embedded applications.
• Comprehensive System Peripherals: Supports Brown-out Reset (BOR), Power-On Reset (POR), Watchdog Timer (WDT), and PWM for enhanced system stability and control.
