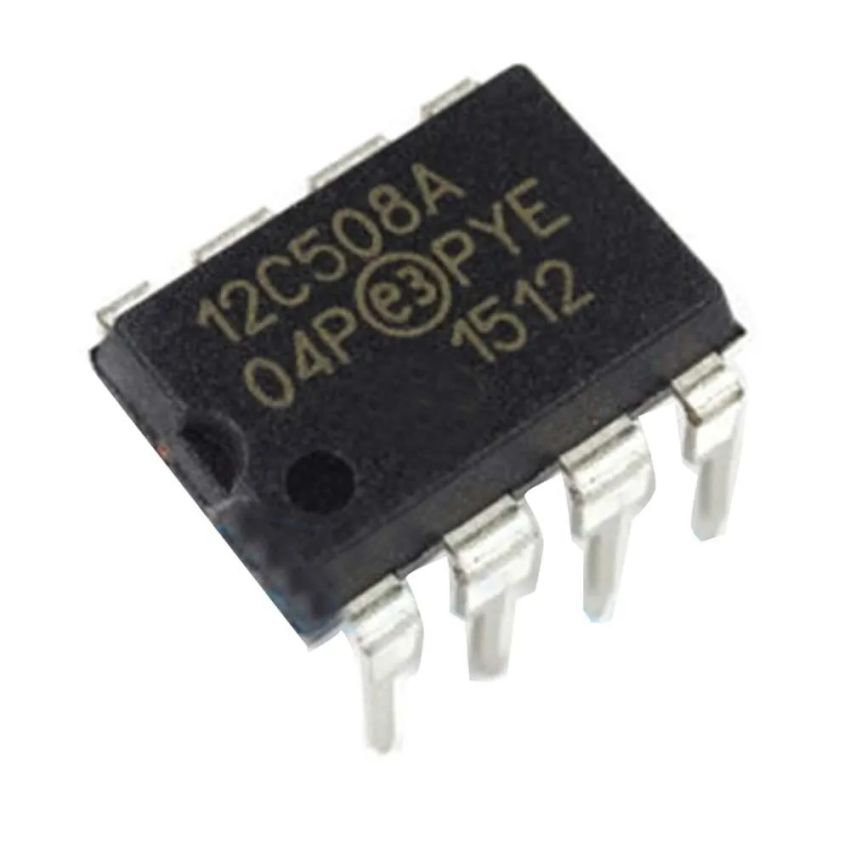

PIC12C508A/P, 8-Pin 8-Bit CMOS Microcontroller,DIP-8

The PIC12C508A/P is a compact, high-performance, 8-bit CMOS microcontroller from Microchip, ideal for applications requiring efficient processing and low power consumption. It features a RISC architecture with only 33 instructions to learn, enabling faster program development and execution at up to 4 MHz.

This microcontroller offers integrated oscillator options, including an internal RC oscillator, reducing external component requirements. With 512 words of EPROM for program storage and 25 bytes of RAM for data handling, it is well-suited for small embedded systems.

The DIP-8 package makes it easy to integrate into breadboard designs and through-hole PCB layouts, ensuring user-friendly development. Its wide voltage range of 2.5V to 5.5V and power-saving features like sleep mode make it suitable for portable and battery-powered applications.

The PIC12C508A/P is widely used in industrial automation, consumer electronics, and home automation systems, providing reliable and energy-efficient performance.

• High-Performance RISC CPU: Executes most instructions in a single cycle, simplifying program development.
• Integrated Oscillator Options: Includes an internal 4 MHz RC oscillator, eliminating the need for external components.
• Low Power Consumption: Fully static CMOS design supports power-saving modes like sleep mode.
• Memory Organization: Equipped with 512 words of EPROM and 25 bytes of RAM, sufficient for small embedded applications.
• 8-Bit Timer with Prescaler: Built-in real-time clock/counter enhances timing accuracy.
• Wide Voltage Range: Operates efficiently between 2.5V and 5.5V, ideal for battery-powered devices.
