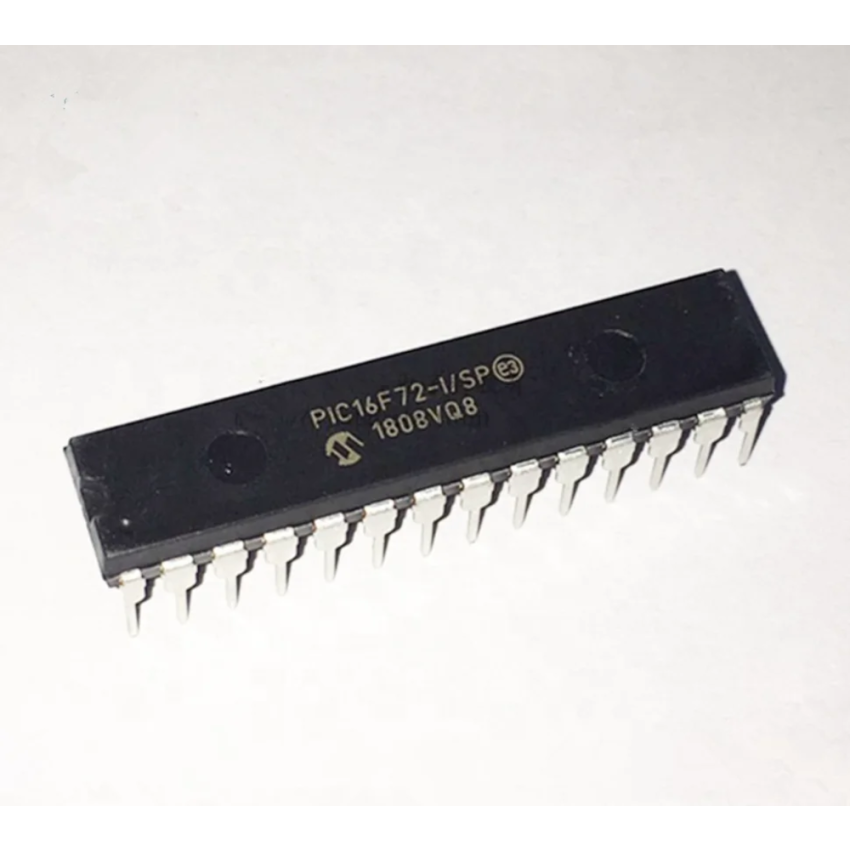

PIC16F72-1/SP ,Microcontroller - 28-Pin, 8-bit CMOS FLASH MCu with A/D Converter

The PIC16F72-1.SP is a versatile 8-bit CMOS FLASH microcontroller from Microchip Technology, designed with RISC architecture to ensure fast and efficient performance. It features 2K x 14 words of flash program memory, 128 bytes of RAM, and an 8-level deep hardware stack. Operating at a frequency of up to 20 MHz, this microcontroller includes a 5-channel 8-bit ADC, timers, and a Capture/Compare/PWM module, making it ideal for applications requiring precise control and data conversion.

With a 28-pin DIP package, this microcontroller is compatible with various development platforms and suited for easy prototyping.

Key Features :

• High-Performance RISC CPU: Executes most instructions in a single clock cycle, achieving up to 200 ns instruction cycle time.
• Memory: 2K x 14 words Flash program memory, 128 bytes RAM, and an 8-level stack.
• Peripheral Modules: Includes Timer0, Timer1, and Timer2, as well as a 5-channel 8-bit ADC.
• Capture/Compare/PWM: Module with an 8-bit timer for precise control applications.
• Serial Communications: Supports SPI/I2C communication protocols.
• Package: 28-Pin DIP, easy for through-hole PCB designs and prototyping.
