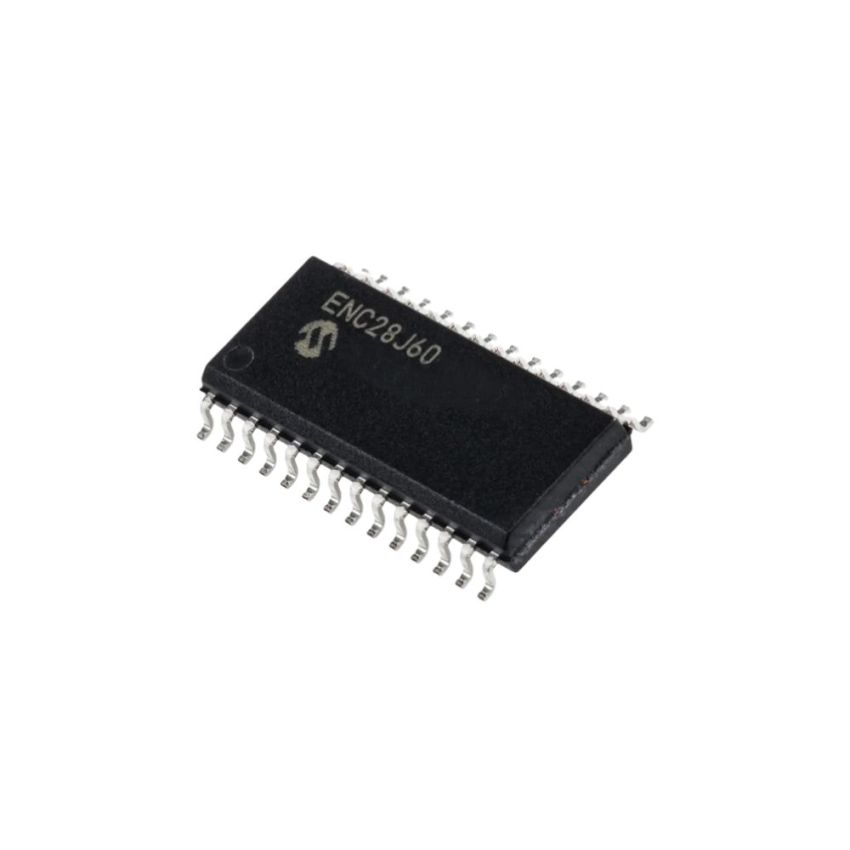

ENC28J60,Ethernet Controller,IEEE 802.3 Compatible,SMD

The ENC28J60 Ethernet controller is a versatile and compact solution for integrating Ethernet functionality into your embedded systems. Designed to be IEEE 802.3 compliant, this controller supports 10Base-T networks with an integrated MAC and PHY. Its high-speed SPI interface ensures seamless communication with the host controller. The ENC28J60 features programmable functions like automatic retransmit, CRC generation, and error packet rejection, making it reliable for demanding applications. Its compact SMD package and 3.3V operational voltage make it ideal for space-constrained projects while ensuring efficient and stable performance across industrial temperatures.

Equipped with a dual-port SRAM for data buffering and hardware-assisted checksum calculations, this Ethernet controller simplifies network communication protocols. Two programmable LED outputs provide status indications, while the integrated DMA ensures faster data transfer.

• Advanced Ethernet Compatibility: Fully compliant with IEEE 802.3 standards, ideal for 10Base-T networks.
• Compact SMD Package: Optimized for efficient PCB integration with a space-saving SMD design.
• High-Speed SPI Interface: Operates with SPI clock speeds up to 20 MHz for efficient communication.
• Integrated MAC and PHY: Includes a built-in MAC and 10Base-T PHY, simplifying network interfacing.
• Programmable Functions: Features such as automatic retransmit, padding, CRC generation, and erroneous packet rejection.
• Robust Design: Operates at 3.3V supply with 5V-tolerant inputs, suitable for industrial (-40°C to +85°C) environments.
