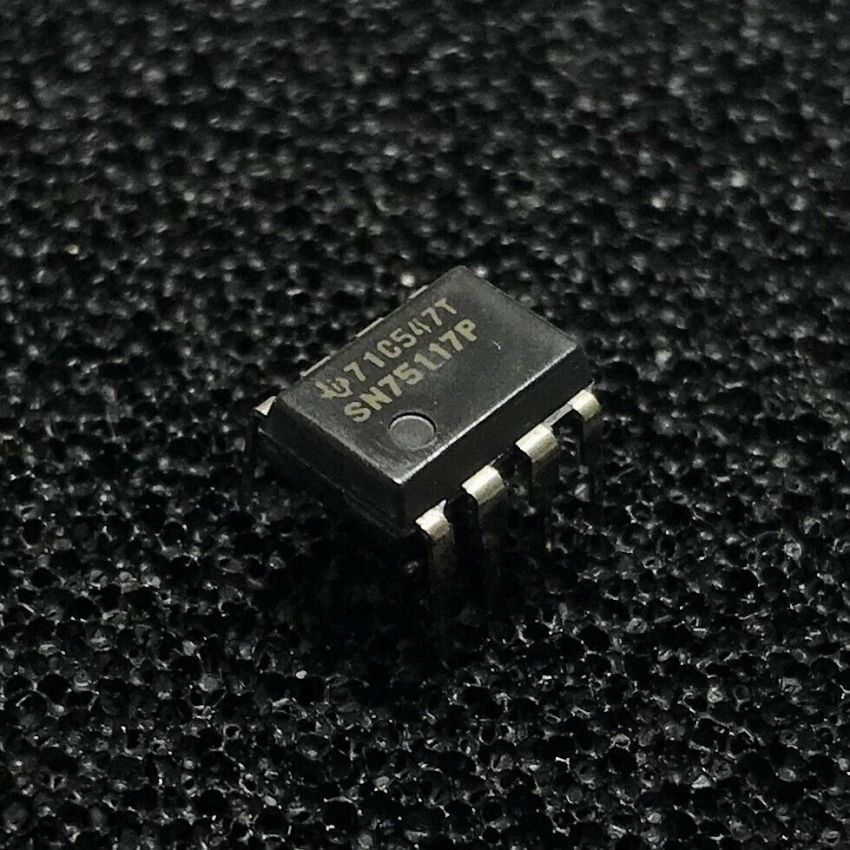

SN75117P, Differential Line Transceiver, 8-Pin DIP Package

The SN75117P is a differential line transceiver designed for interfacing between TTL-type digital systems and differential data-transmission lines. It integrates a 3-state differential line driver and a differential-input line receiver, both operating from a single 5V power supply. The driver inputs and receiver outputs are TTL compatible, facilitating easy integration into TTL-based systems. The device is particularly useful in party-line or bus-organized systems, as the driver output is internally connected to the receiver input, reducing external wiring and simplifying design. This configuration is ideal for applications requiring reliable differential data transmission with minimal external components.

• Integrated Driver and Receiver – Combines a differential line driver and receiver in a single package.
• Single 5V Power Supply – Operates from a single 5V supply, simplifying power requirements.
• TTL-Compatible Inputs and Outputs – Ensures compatibility with TTL logic levels.
• Differential Line Operation – Designed for reliable data transmission over differential lines.
• Driver Output Internally Connected to Receiver Input – Simplifies design by connecting the driver output directly to the receiver input internally.
• Designed for Party-Line (Data-Bus) Applications – Suitable for bus-organized systems requiring multiple transceivers.
