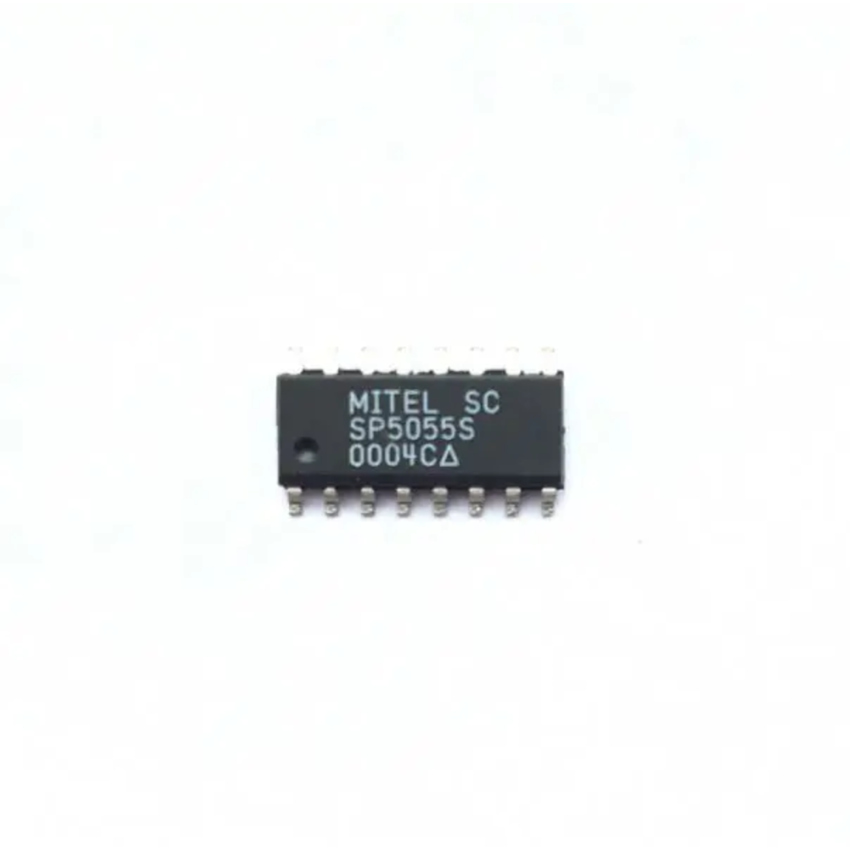

SP5055S , SMD, 2.6GHz I2C BuS Controlled Synthesizer, MP16 Package

The SP5055S is a single-chip frequency synthesizer designed for precise control of TV tuning systems. Operating at frequencies up to 2.6GHz, it uses a standard I2C bus interface, allowing for easy integration and control in systems with multiple tuners. The device includes six control outputs and a 5-level ADC, making it versatile for various applications.

Packaged in the MP16 16-pin Miniature Plastic configuration, the SP5055S is compact and ideal for satellite TV, high-frequency cable systems, and other digital tuning applications. With built-in phase lock and ESD protection, it ensures stable and secure operations.

Key Features :

• 2.6GHz Single Chip System – High-frequency support up to 2.6GHz for TV and satellite applications.
• I2C Bus Programmable – Control and communication over a standard I2C bus.
• 6 Control Outputs – Four bi-directional outputs, ideal for diverse configurations.
• 5-Level ADC – Embedded 5-level Analog-to-Digital Converter for detailed control.
• Phase Lock Detector – Enhanced frequency stability with phase lock detection.
• Low Power Consumption – Designed for efficiency, operating at 5V with minimal current draw.
