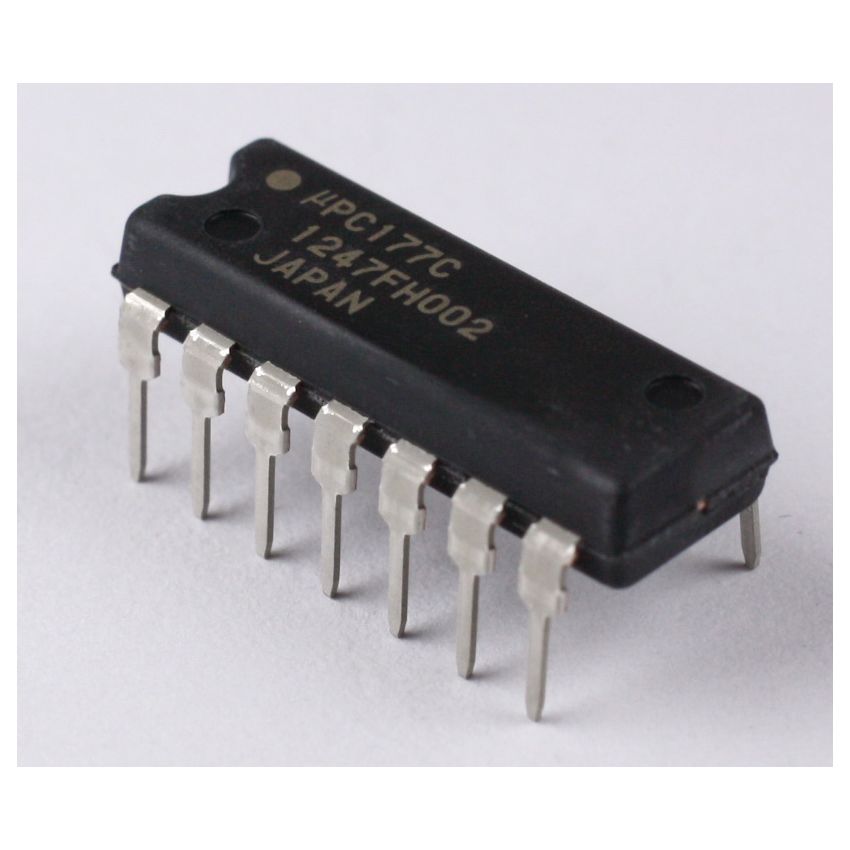

μPC177C, Quad Comparator - DIP-14, Single Power Supply, Low Offset Voltage

The μPC177C is a versatile single power supply quad comparator. This component offers reliable performance with features tailored for industrial, automotive, and general-purpose voltage comparison applications. With a low input offset voltage of 2 mV (typical) and an input bias current of 25 nA (typical), it ensures accurate signal detection while maintaining low power consumption.

The μPC177C operates within a wide supply voltage range from 2V to 32V, making it compatible with a variety of power supply configurations. The open-collector output configuration allows for easy wired OR operation, facilitating multi-device integration in complex circuit designs. This comparator is ideal for applications requiring precise voltage threshold detection and is often used in voltage monitoring, zero-crossing detectors, and level-shifting circuits.

Key Features :

• Low Input Offset Voltage: 2 mV (typical) ensures high accuracy in voltage comparisons.
• Low Input Bias Current: 25 nA (typical), minimizing power consumption.
• Wide Operating Voltage Range: Compatible with supply voltages from 2V to 32V.
• Open-Collector Output: Allows for wired OR connections and flexible output configurations.
• Pulse Response Time: Fast response with a typical value of 1.3 μs.
• Compact DIP-14 Package: Easy to integrate into standard circuit designs.
