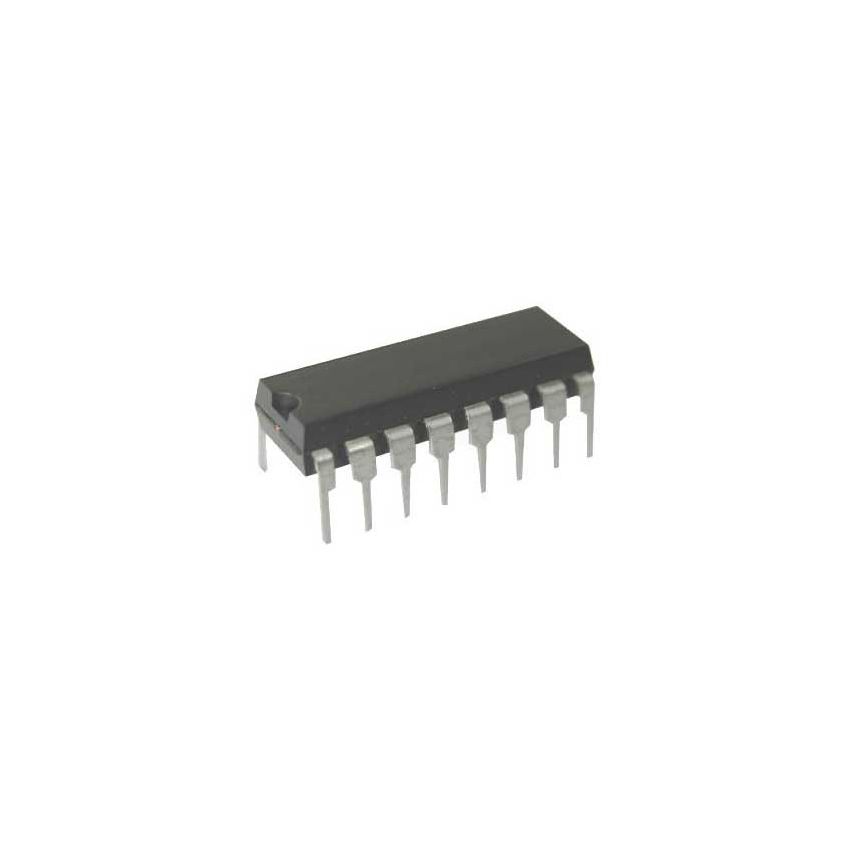

D17103CX, 4-Bit Microcontroller, DIP

The D17103CX is a 4-bit single-chip microcontroller from NEC, designed for a variety of embedded control applications. It integrates a 4-bit CPU core, on-chip ROM for program memory, and RAM for data handling, making it an efficient choice for cost-sensitive applications.

With integrated peripheral functions, including timers, multiple I/O ports, and interrupt handling, the D17103CX is well-suited for use in consumer electronics, home appliances, industrial automation, and compact control systems. Its CMOS-based architecture ensures low power consumption, making it ideal for battery-powered applications.

The DIP package allows for easy prototyping and direct integration into through-hole PCB designs. With a versatile operating voltage range, it is suitable for both low-power and standard voltage applications. Whether used in sensor-based control systems, automotive applications, or custom electronic projects, the D17103CX microcontroller offers reliable performance and flexibility.

• 4-Bit CMOS Microcontroller: Incorporates a 4-bit CPU core for efficient processing.
• On-Chip Memory: Features both program memory (ROM) and data memory (RAM) for storage and operation.
• Integrated Peripherals: Includes timers, I/O ports, and other essential peripherals for versatile application use.
• Low Power Consumption: Designed with CMOS technology to ensure low power usage, suitable for battery-operated devices.
• Compact DIP Package: Available in a Dual In-Line Package (DIP), facilitating easy integration into various hardware designs.
• DIP Package for Easy Integration: Compact Dual In-Line Package (DIP) format for convenient PCB assembly.
